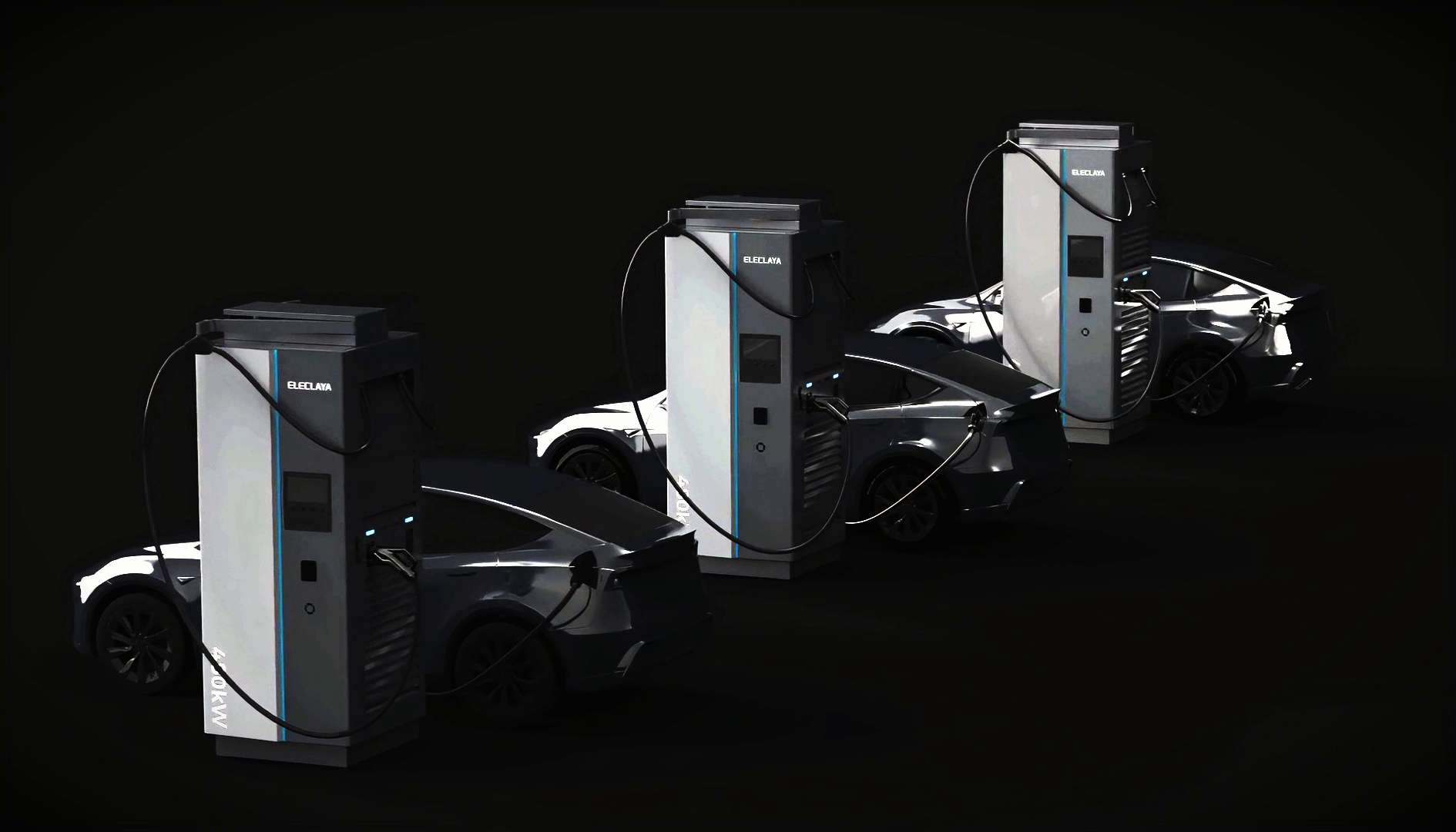

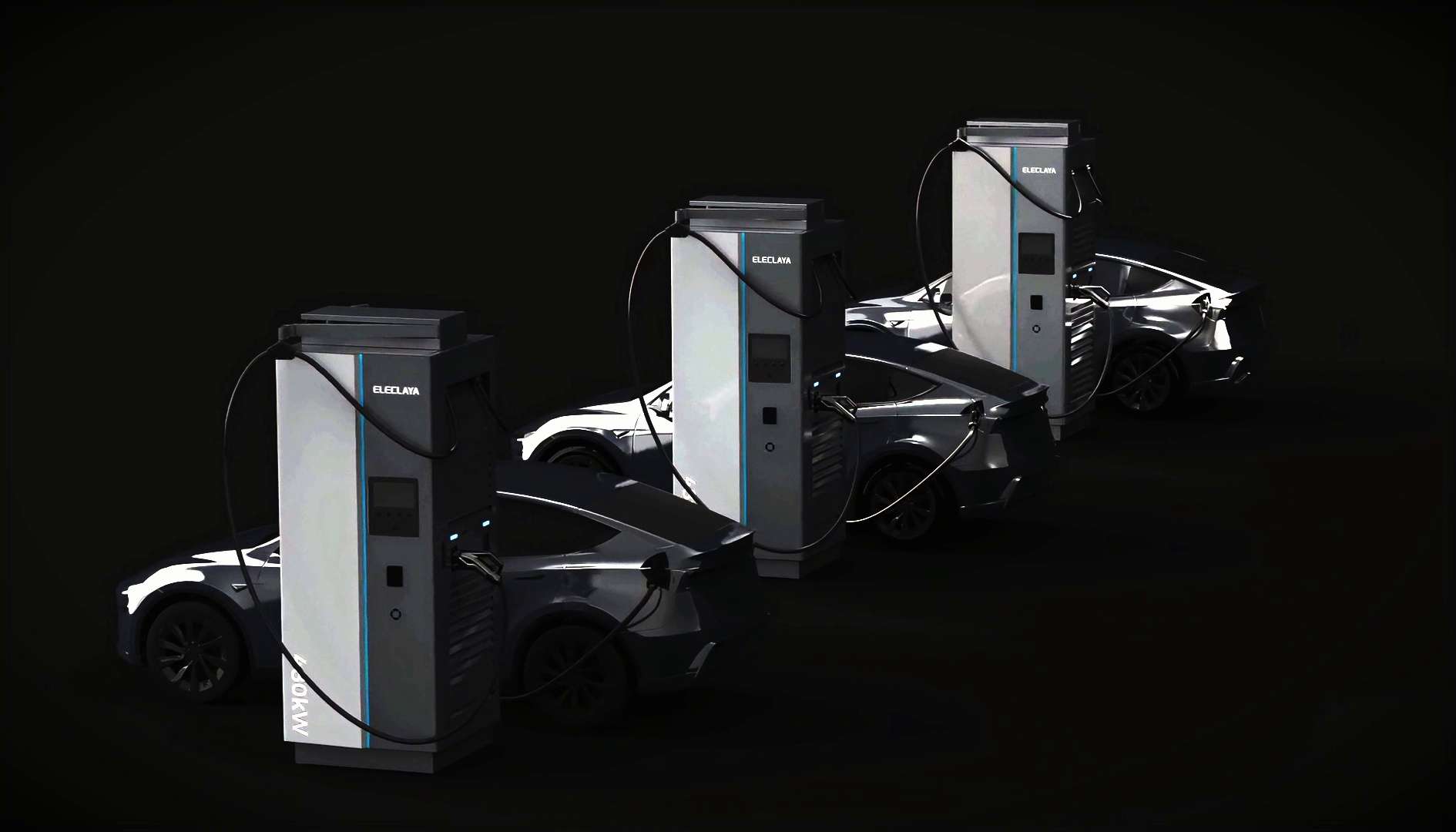

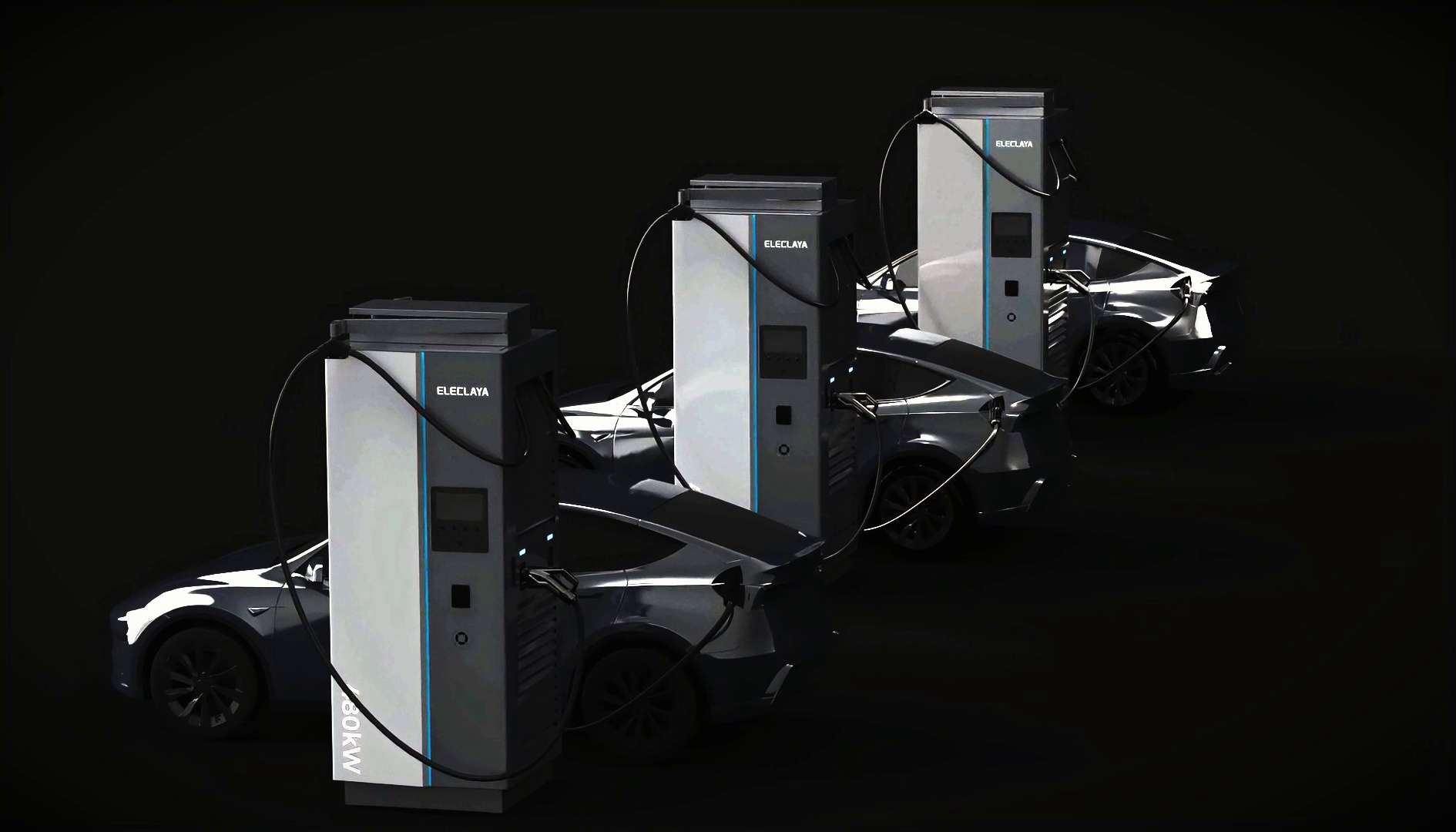

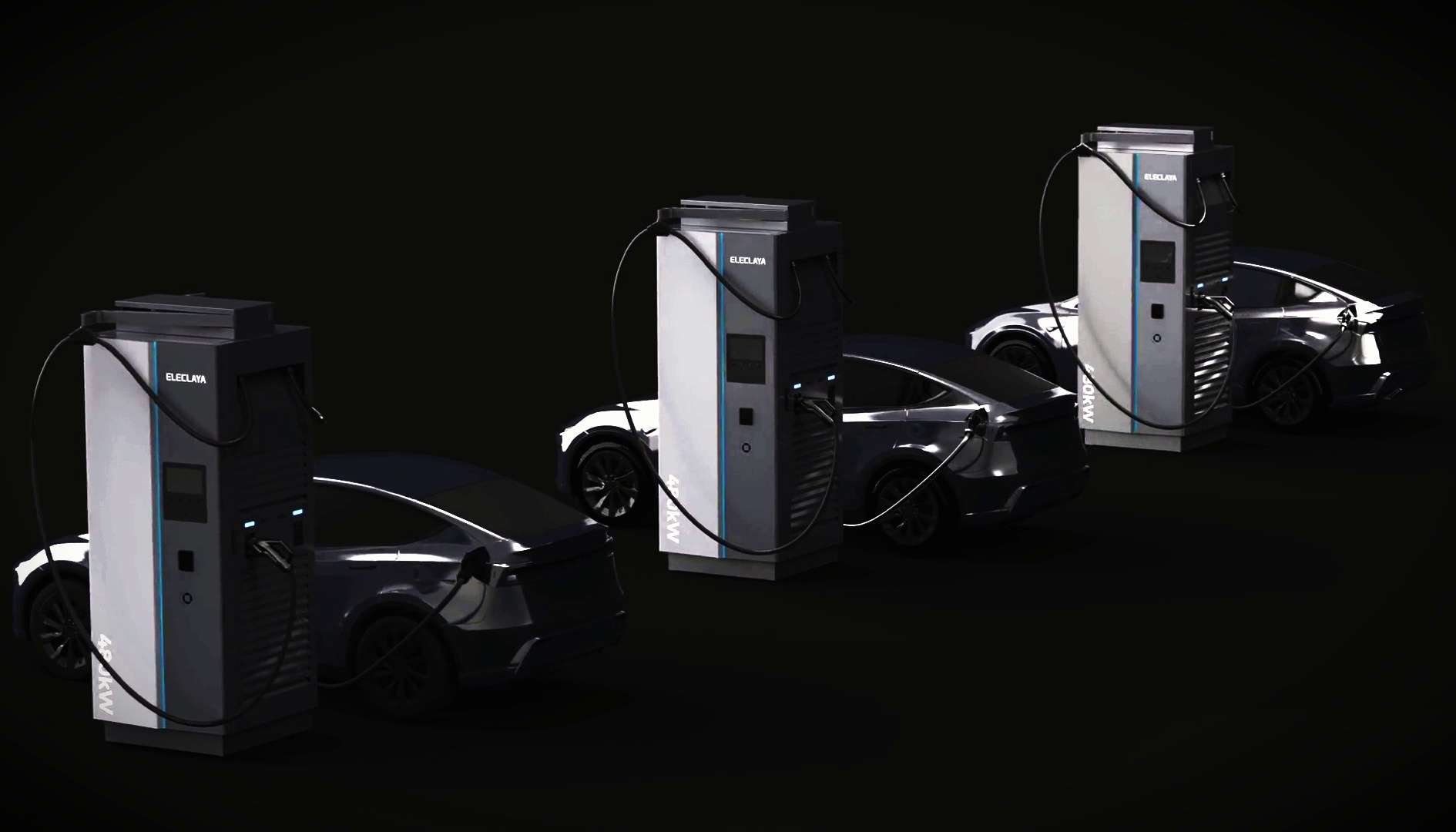

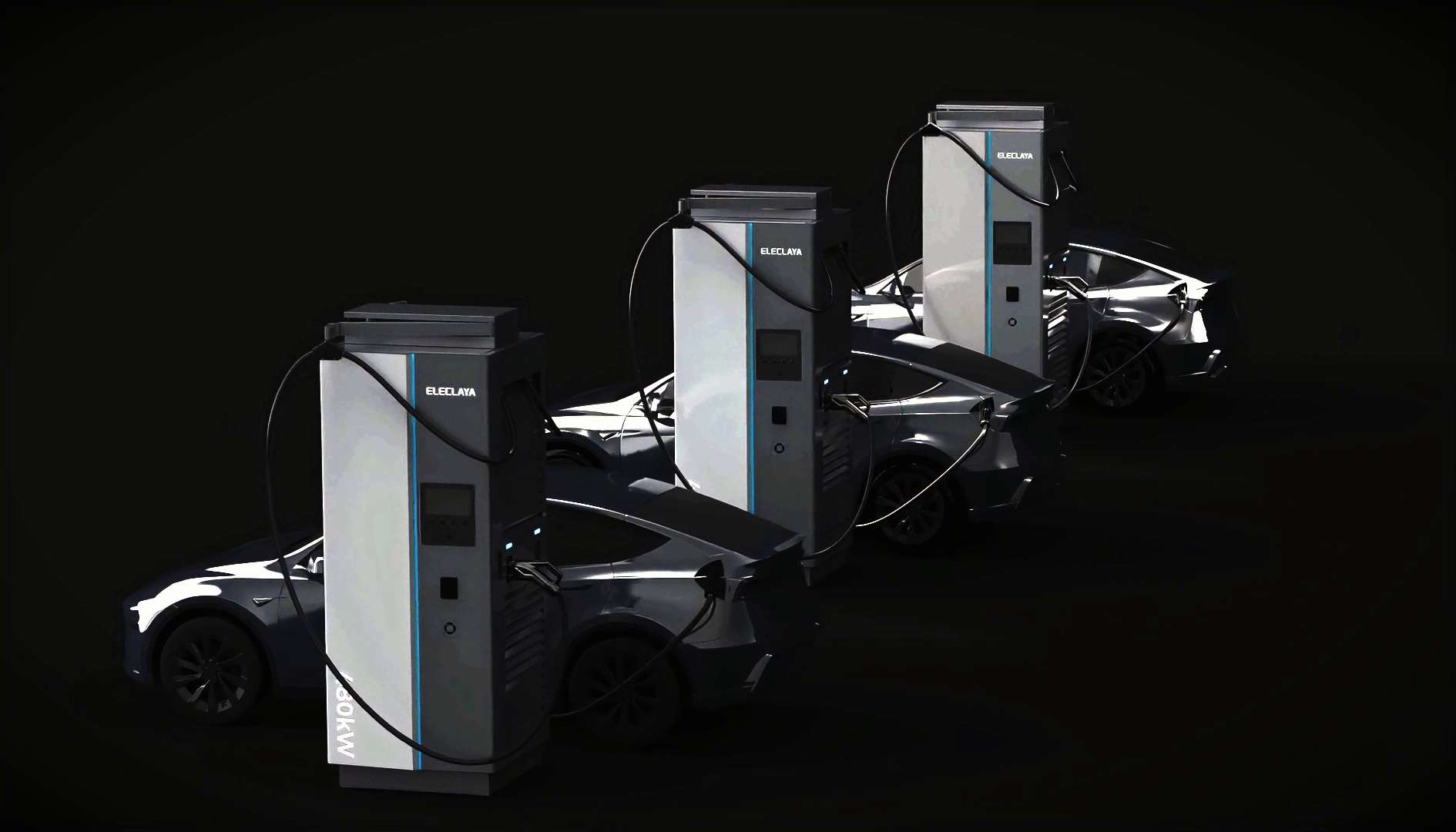

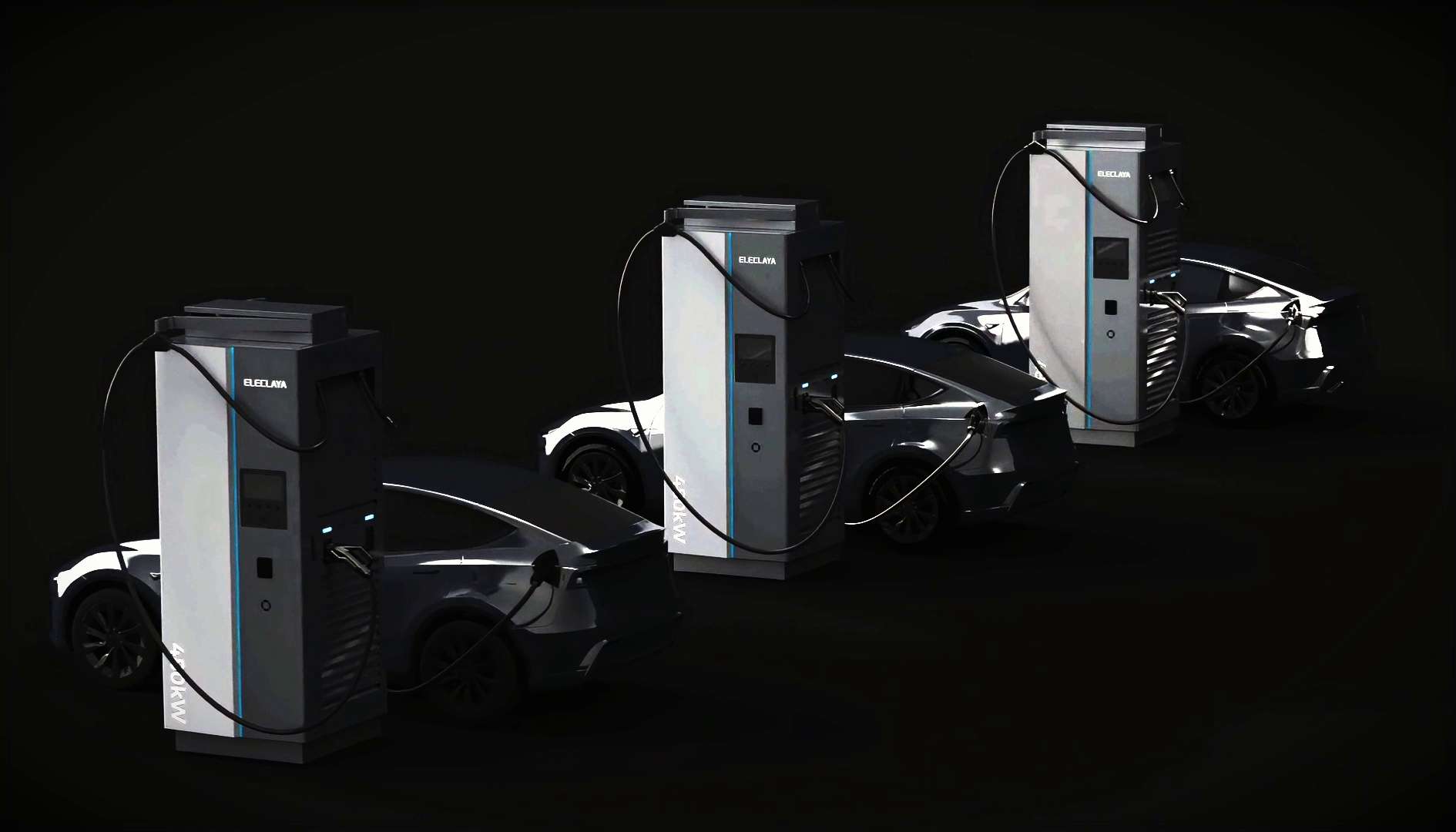

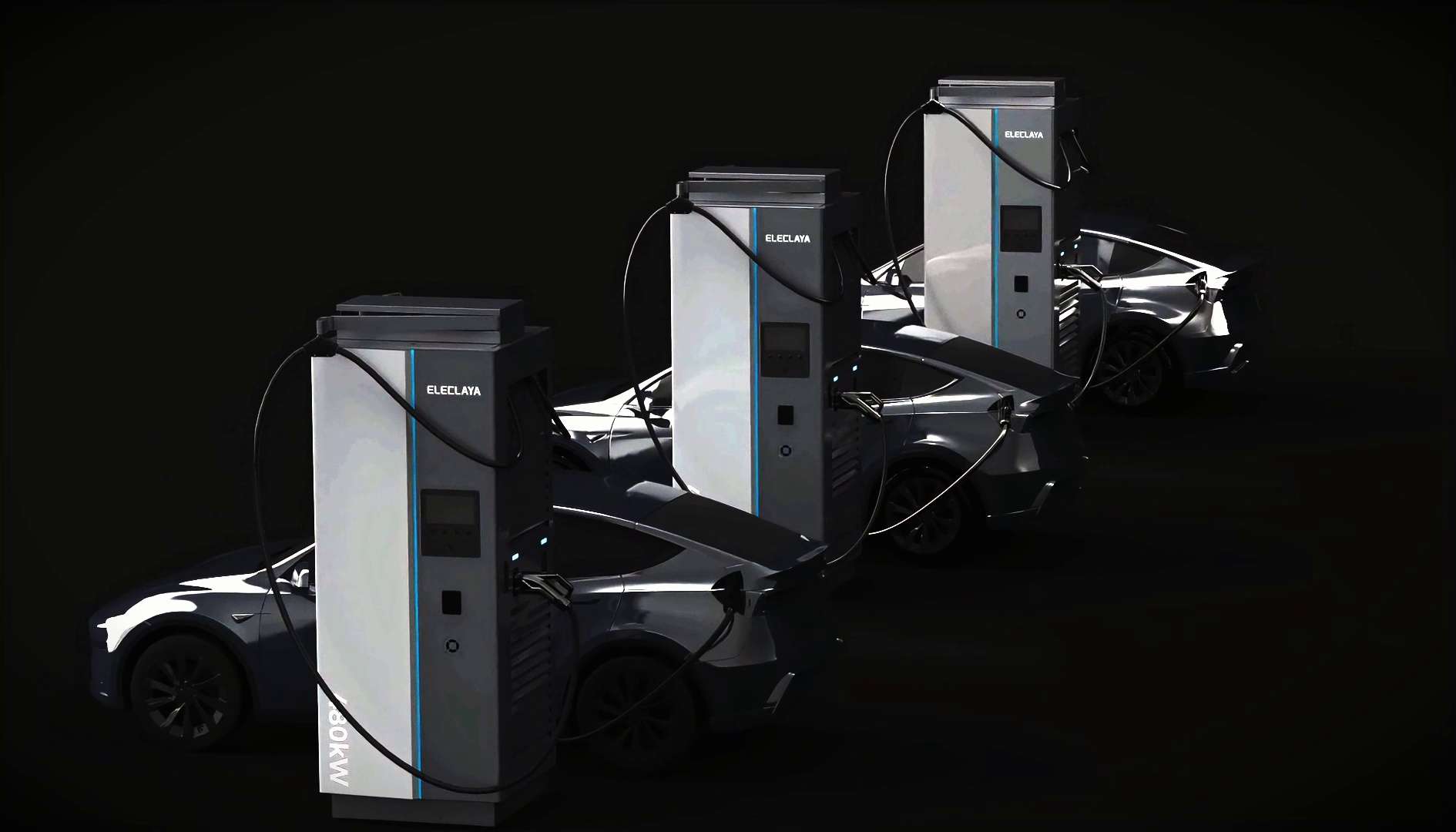

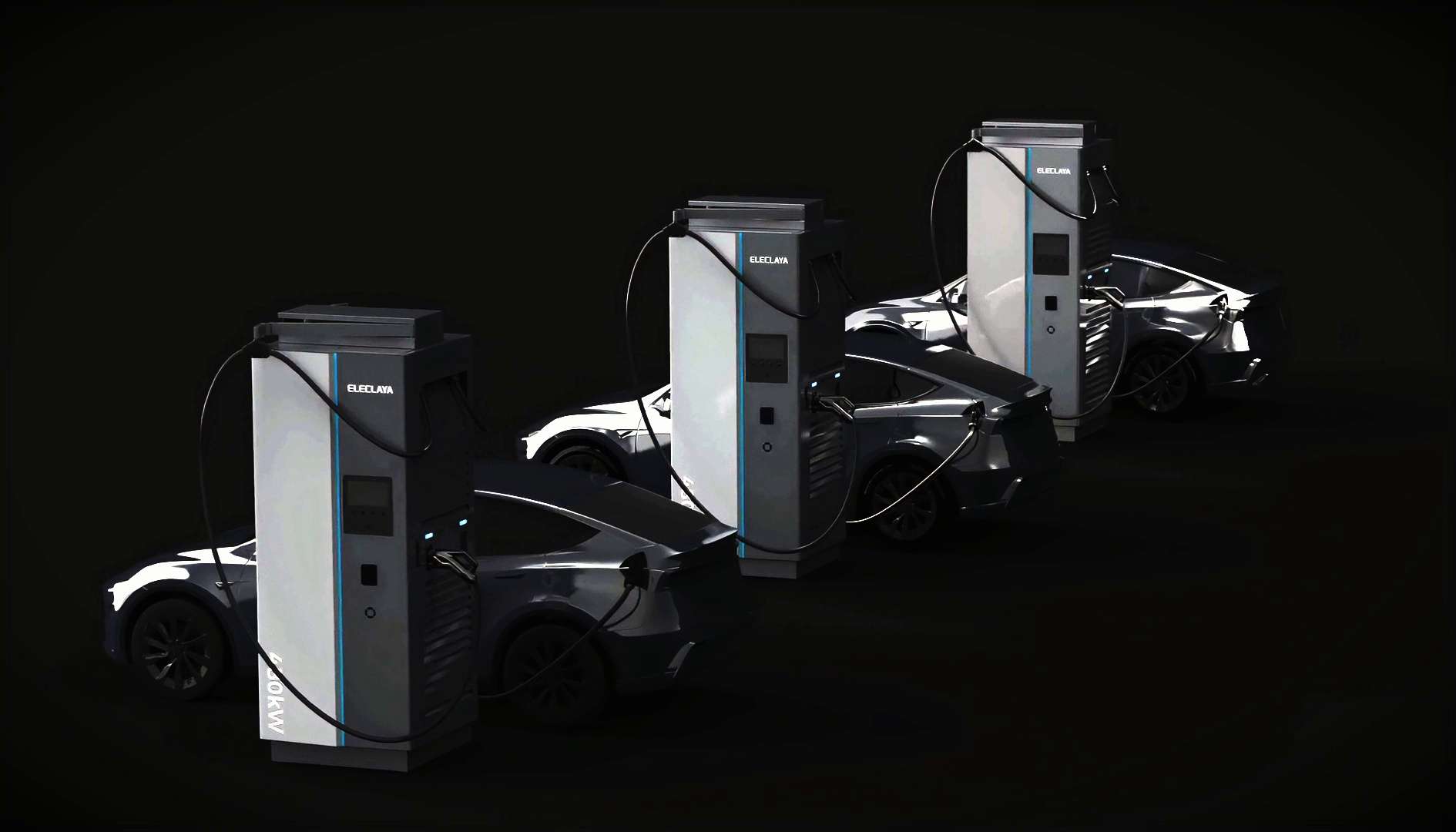

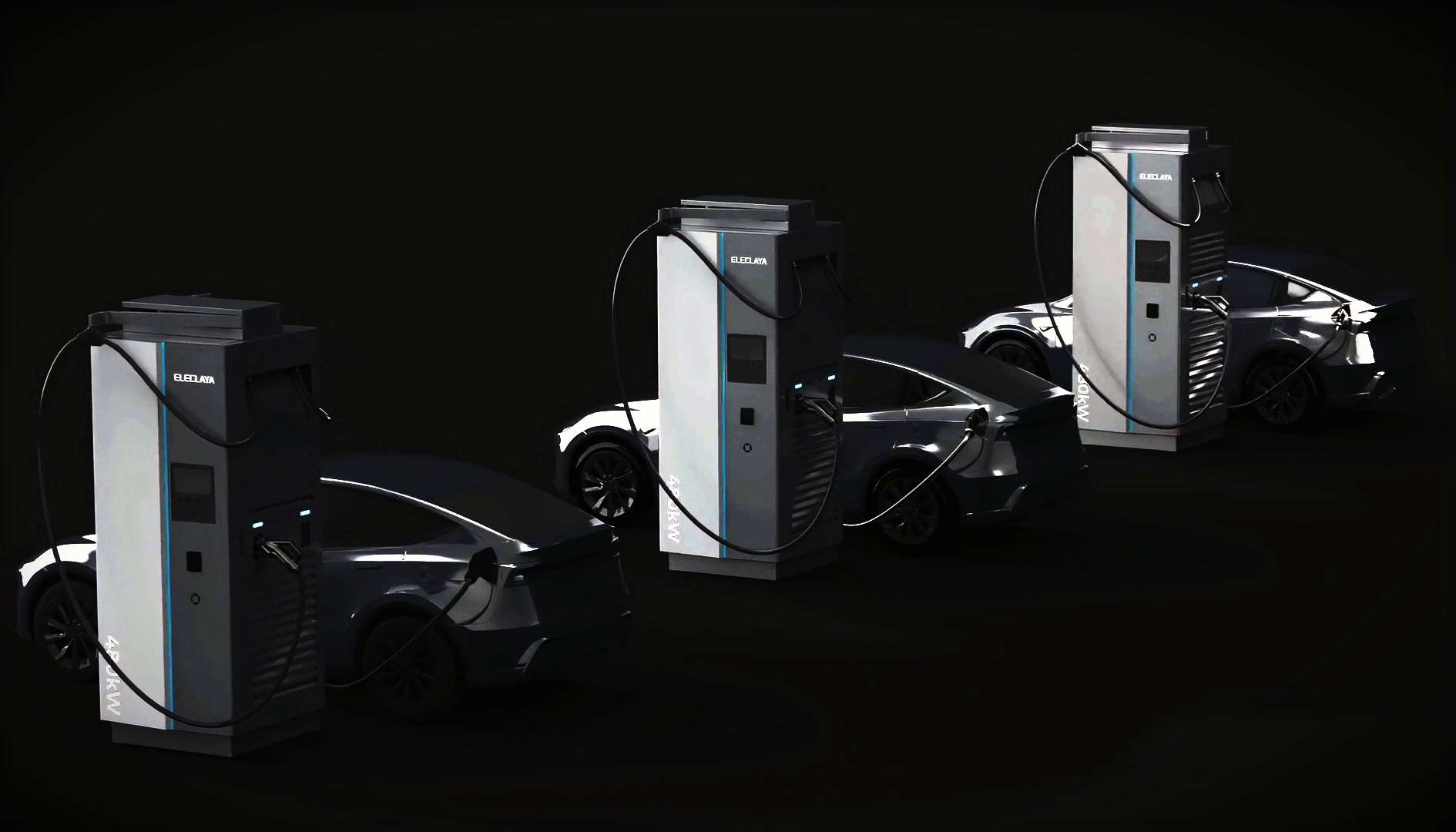

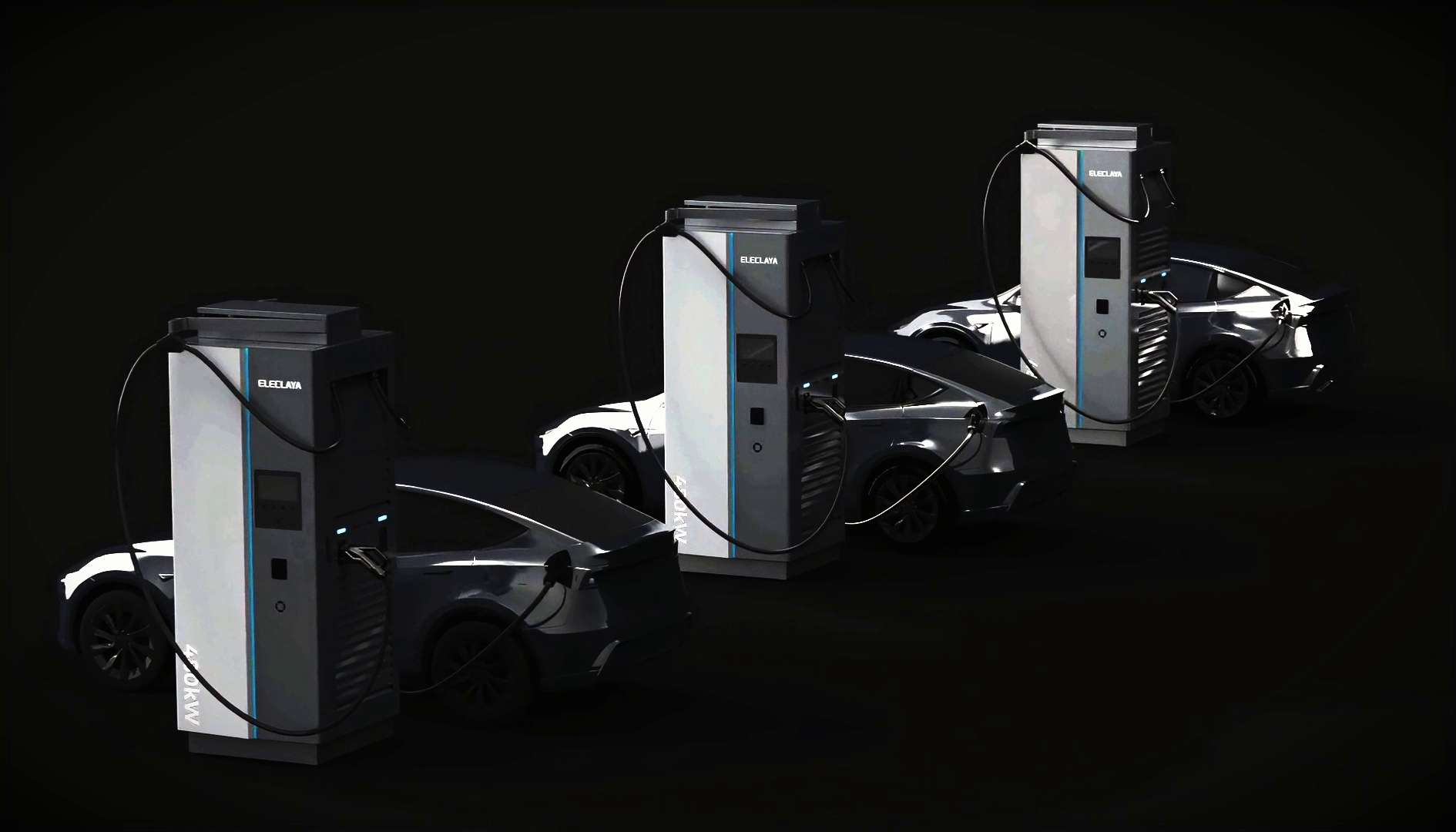

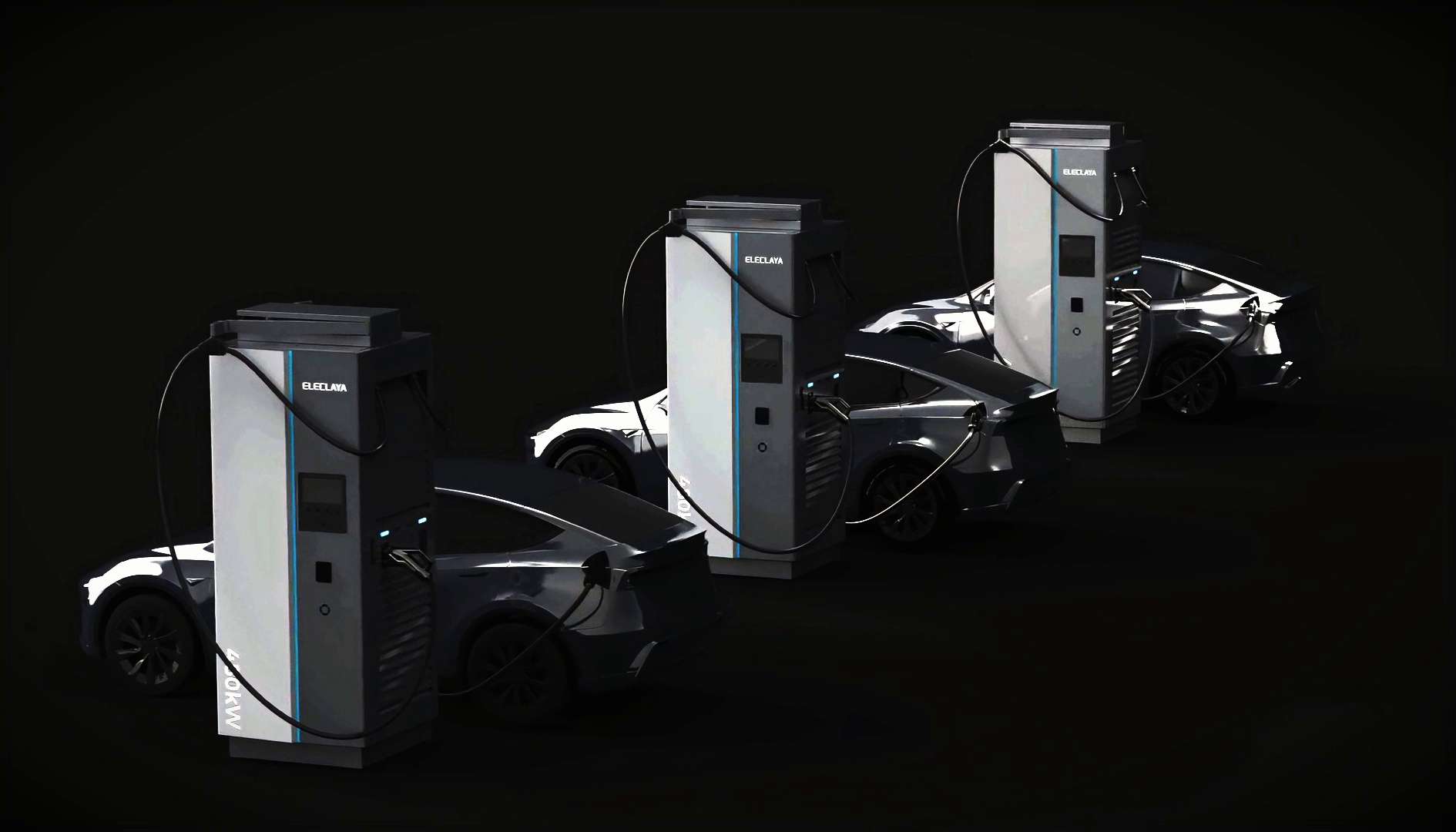

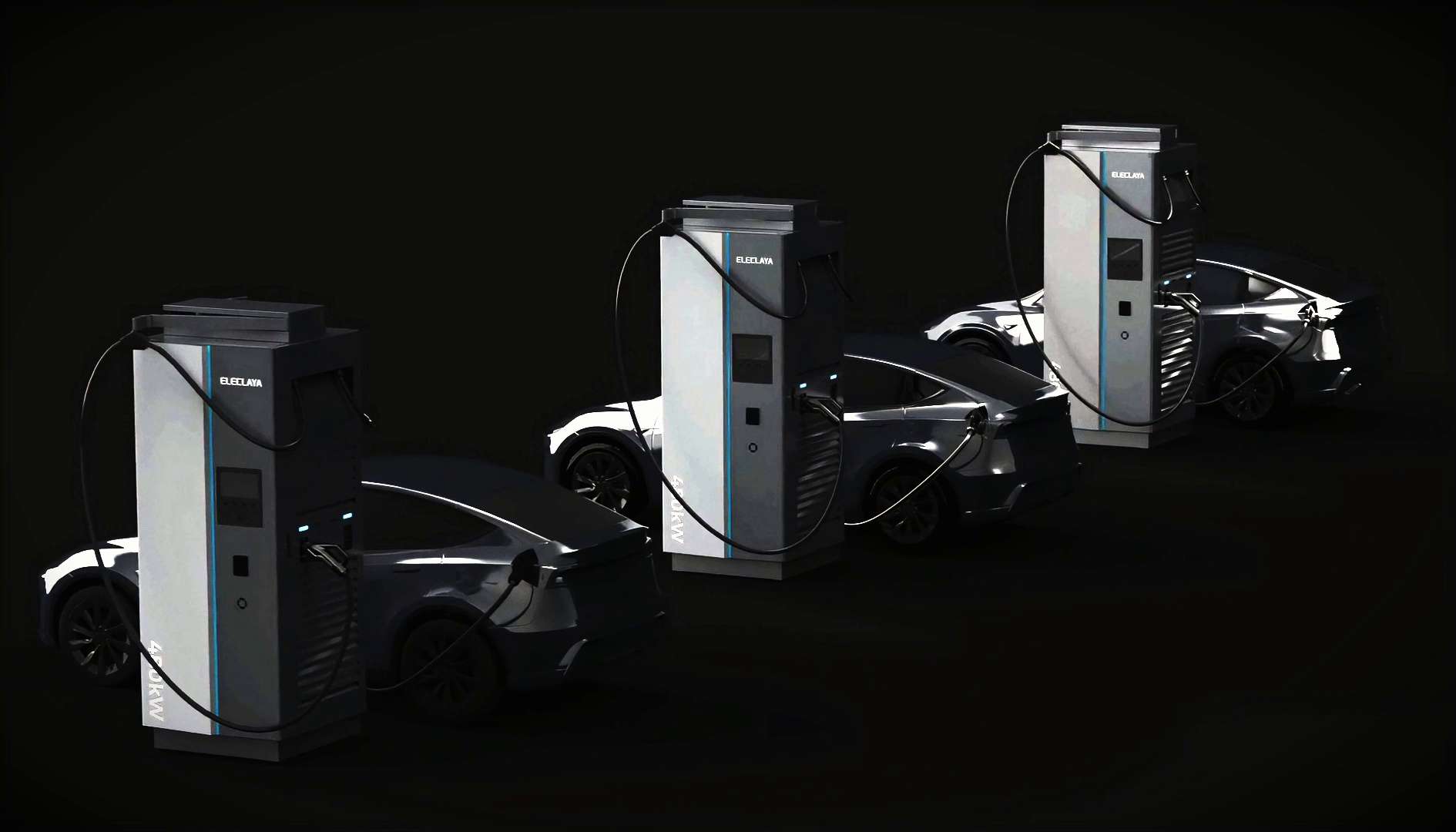

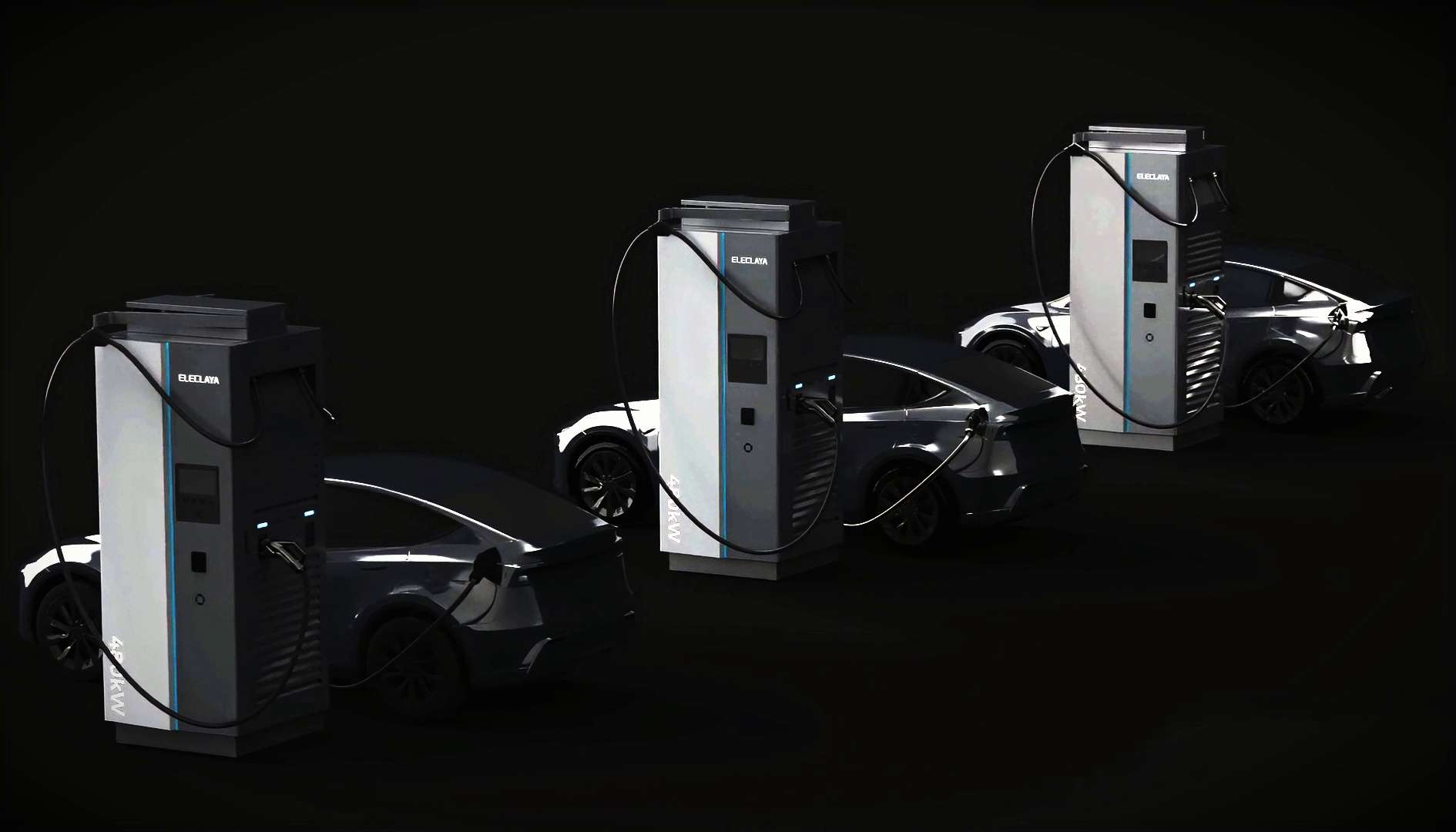

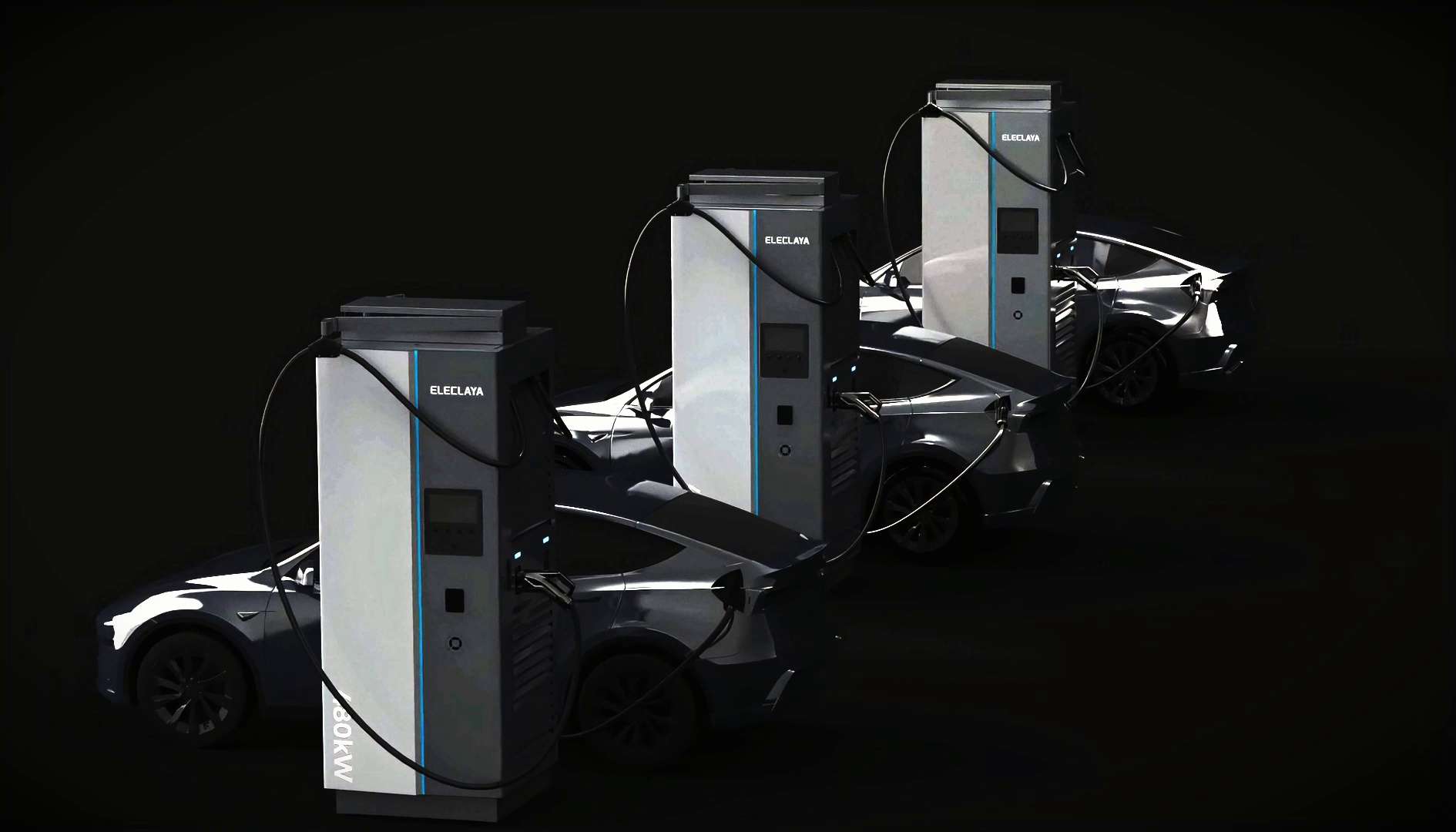

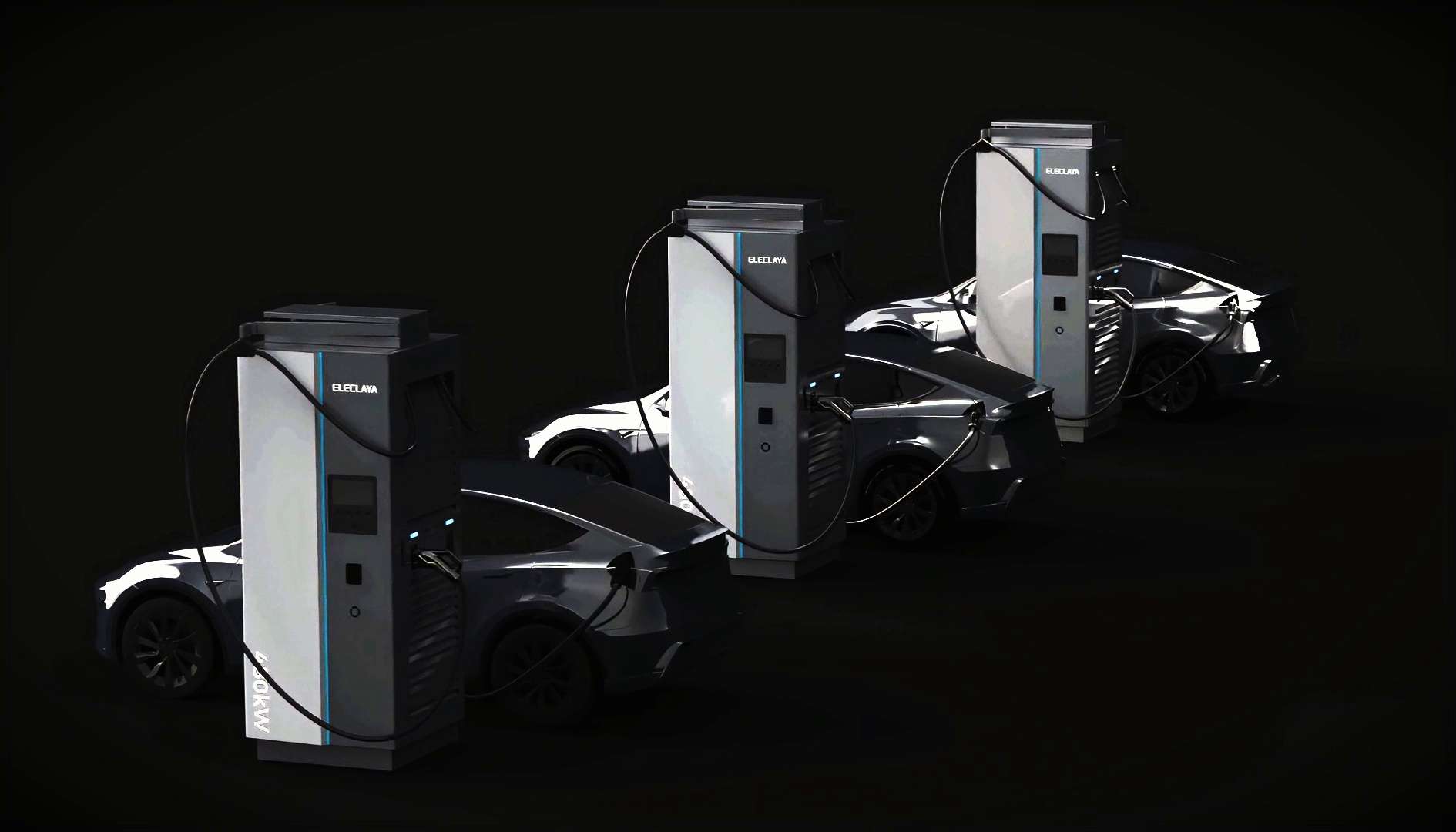

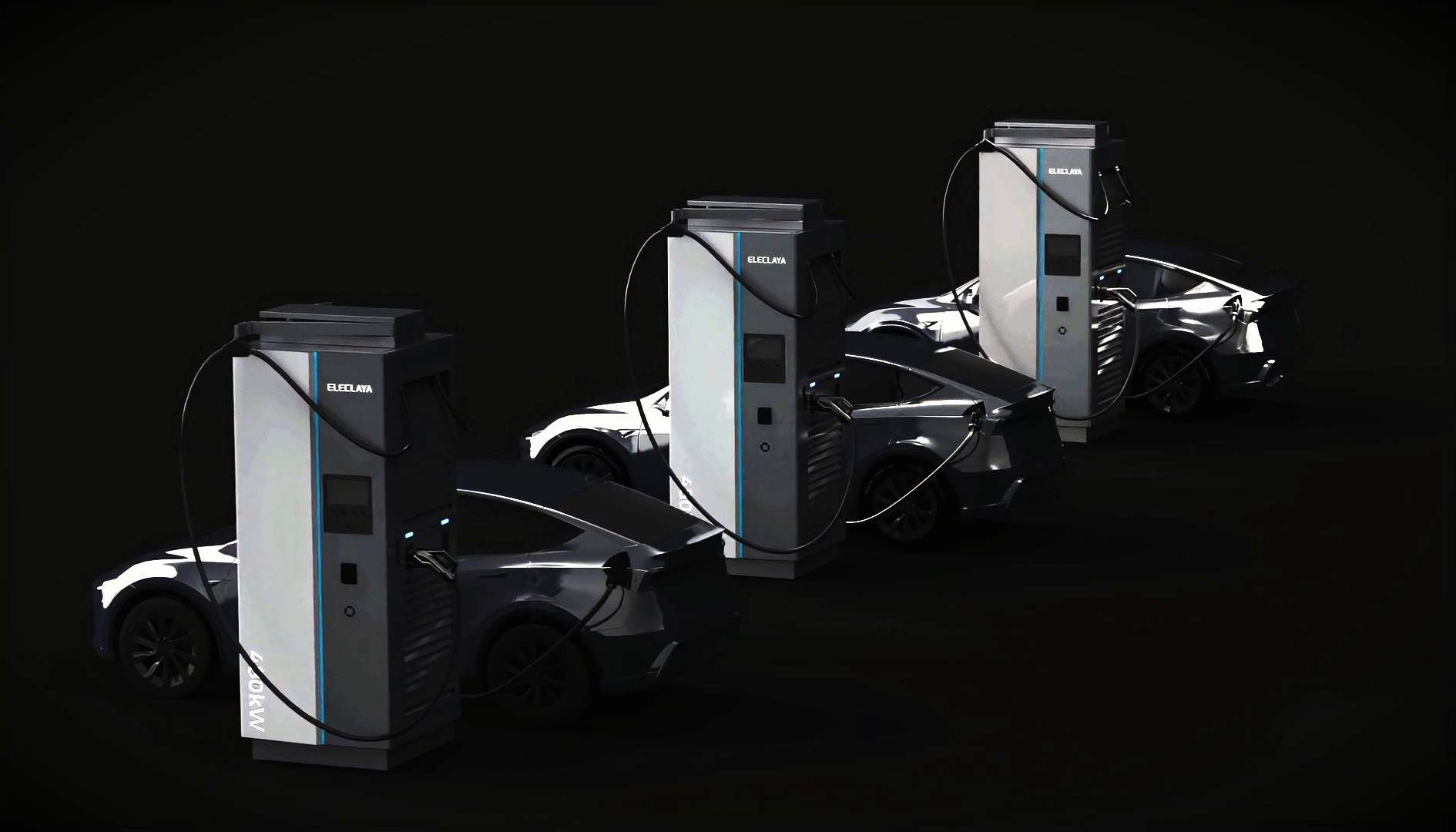

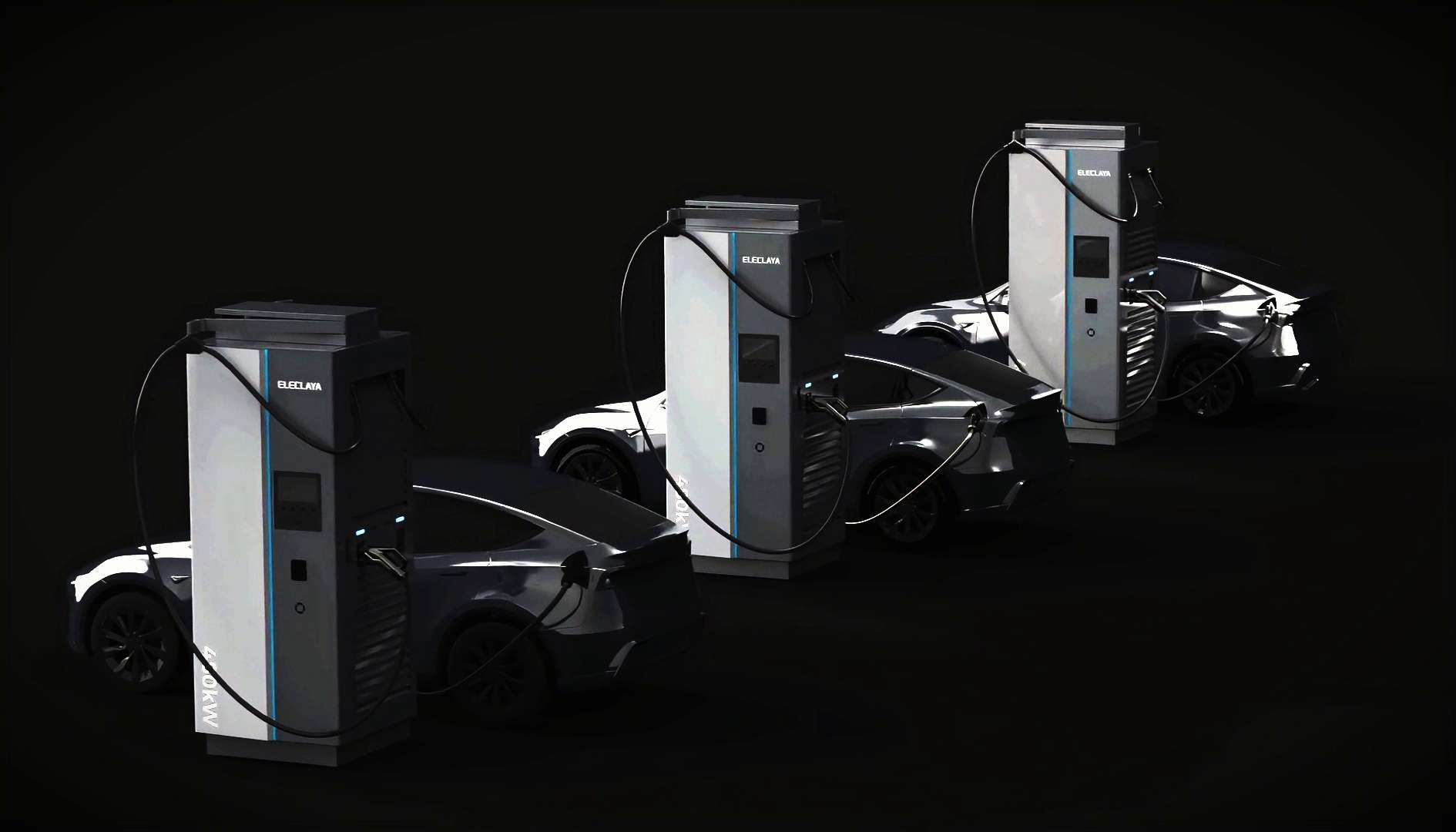

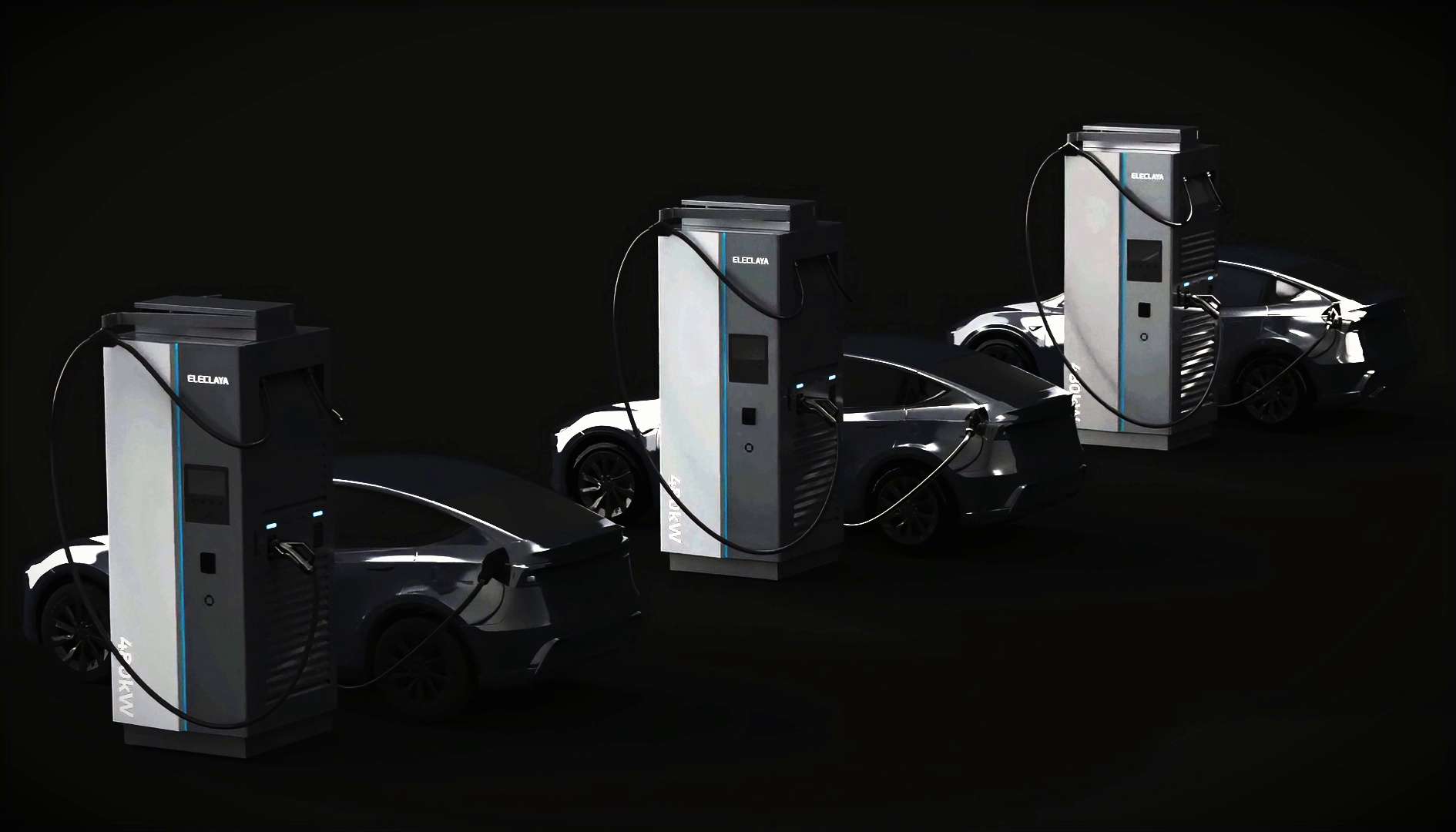

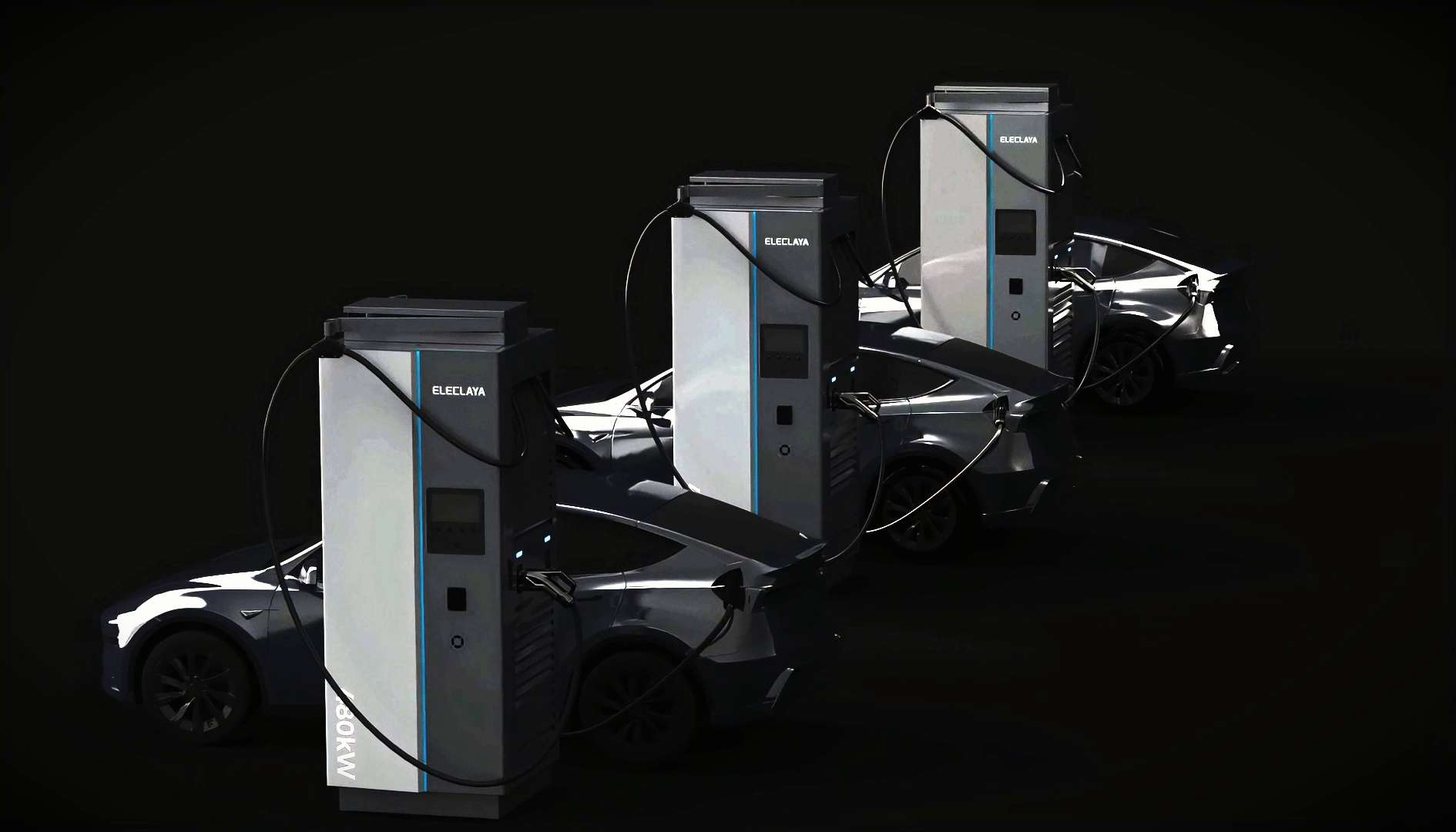

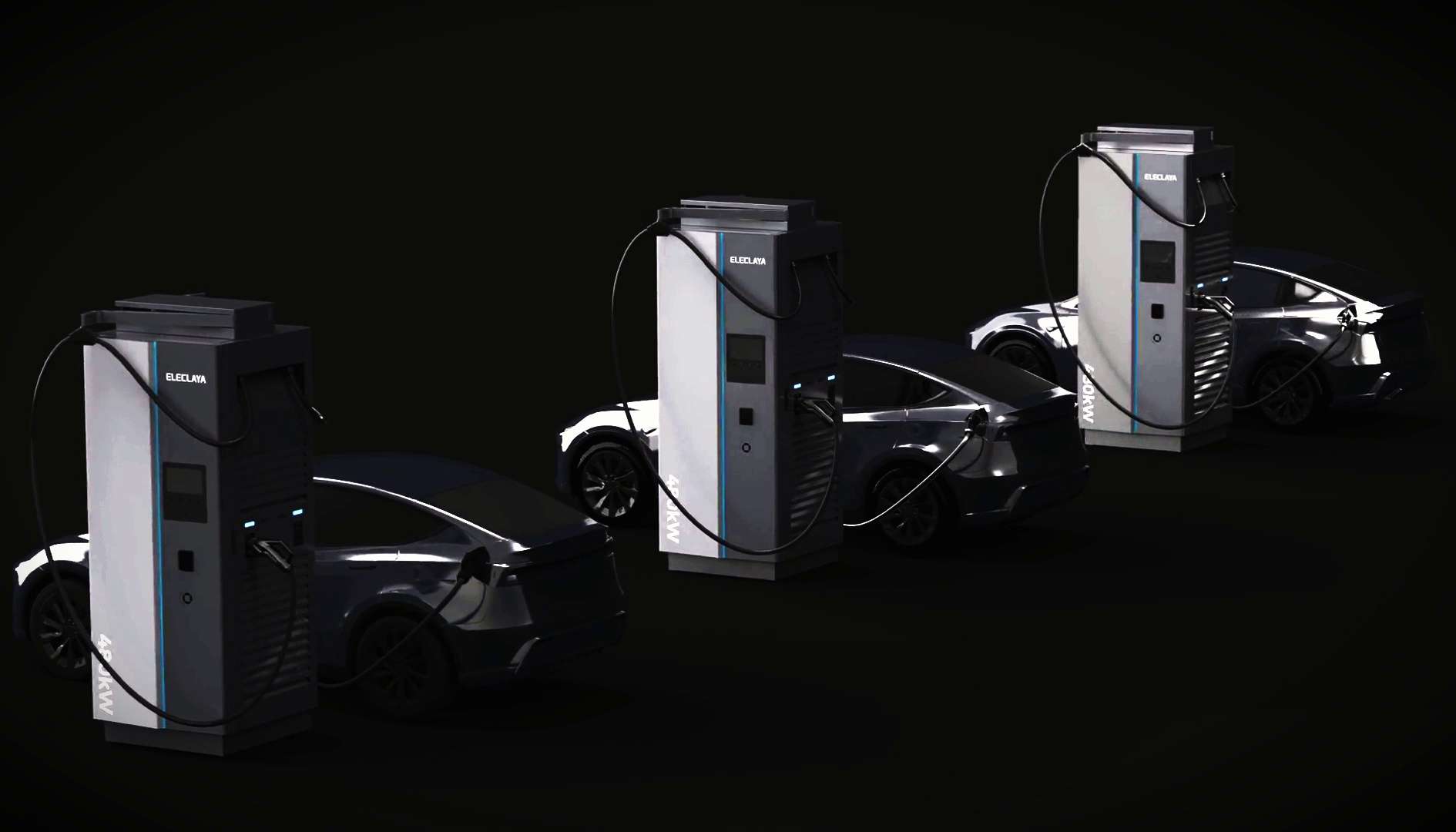

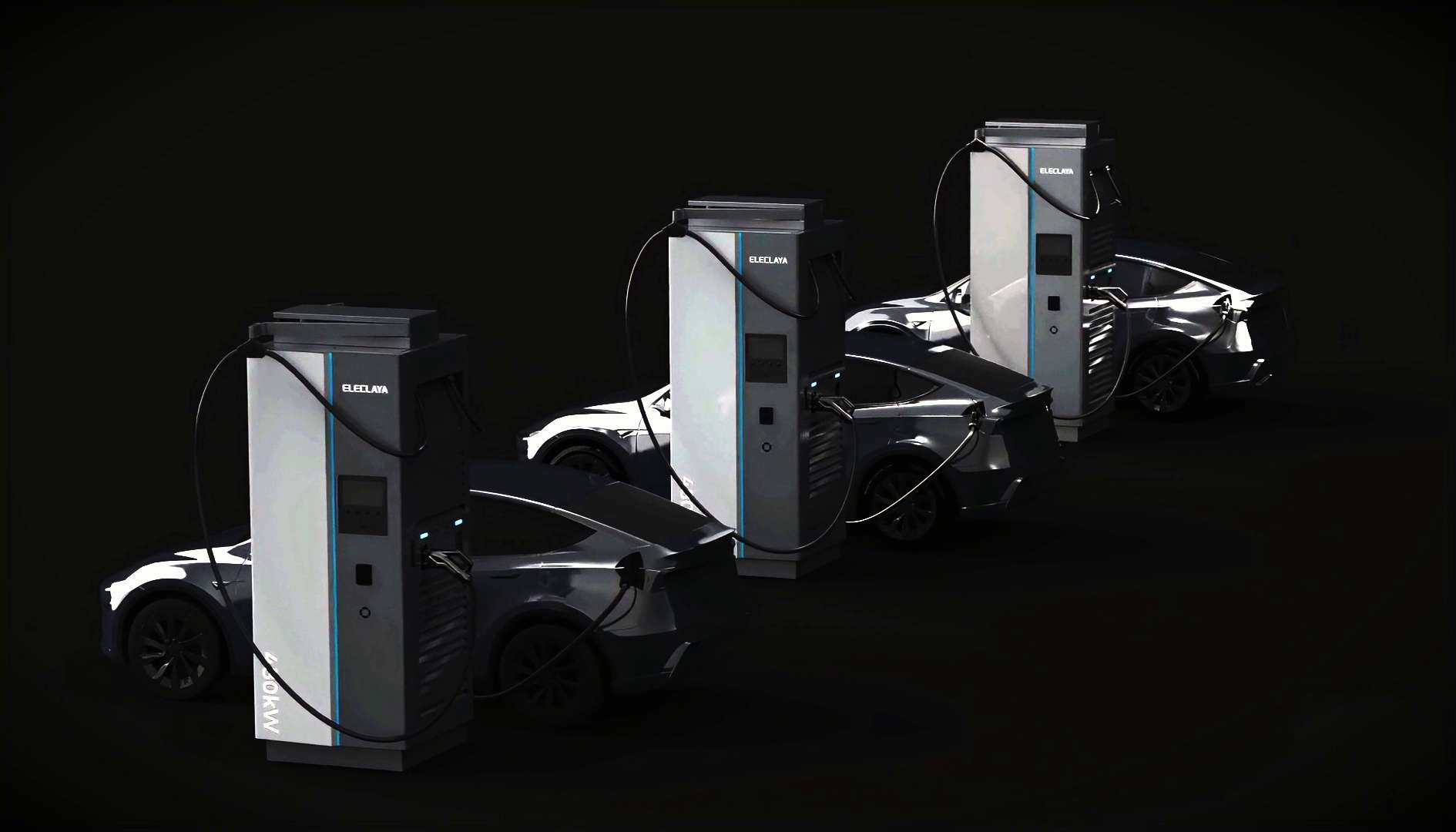

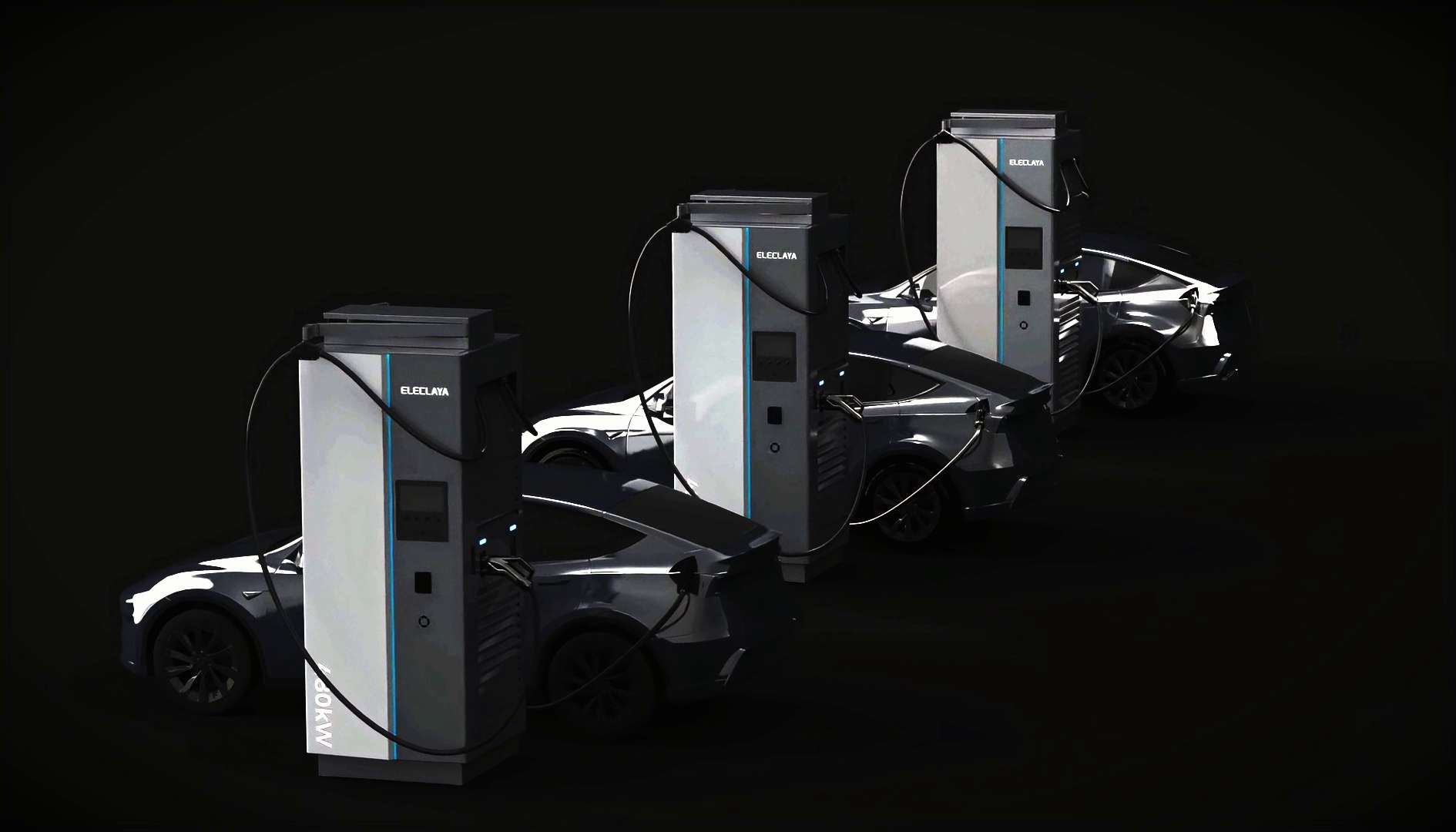

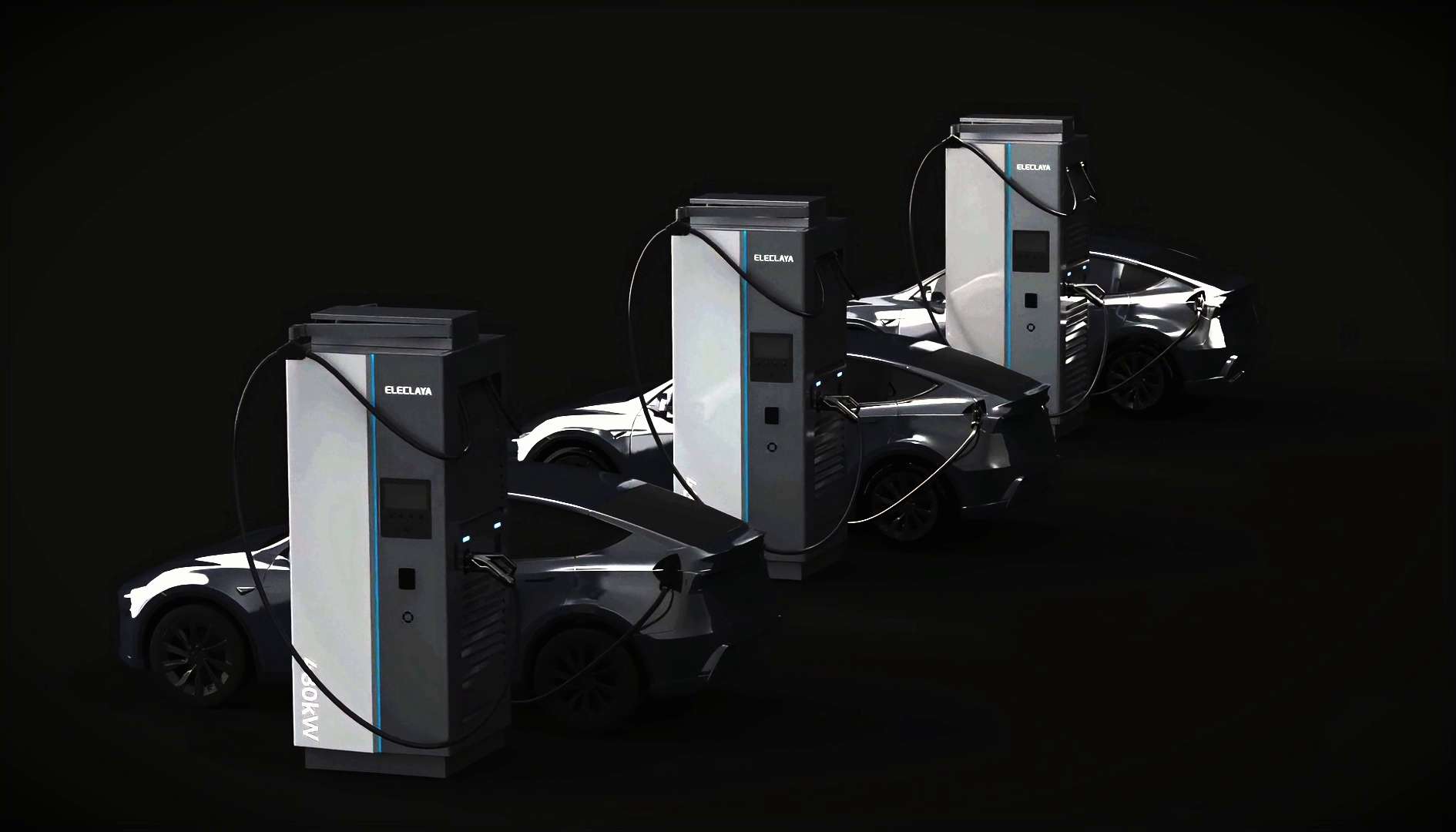

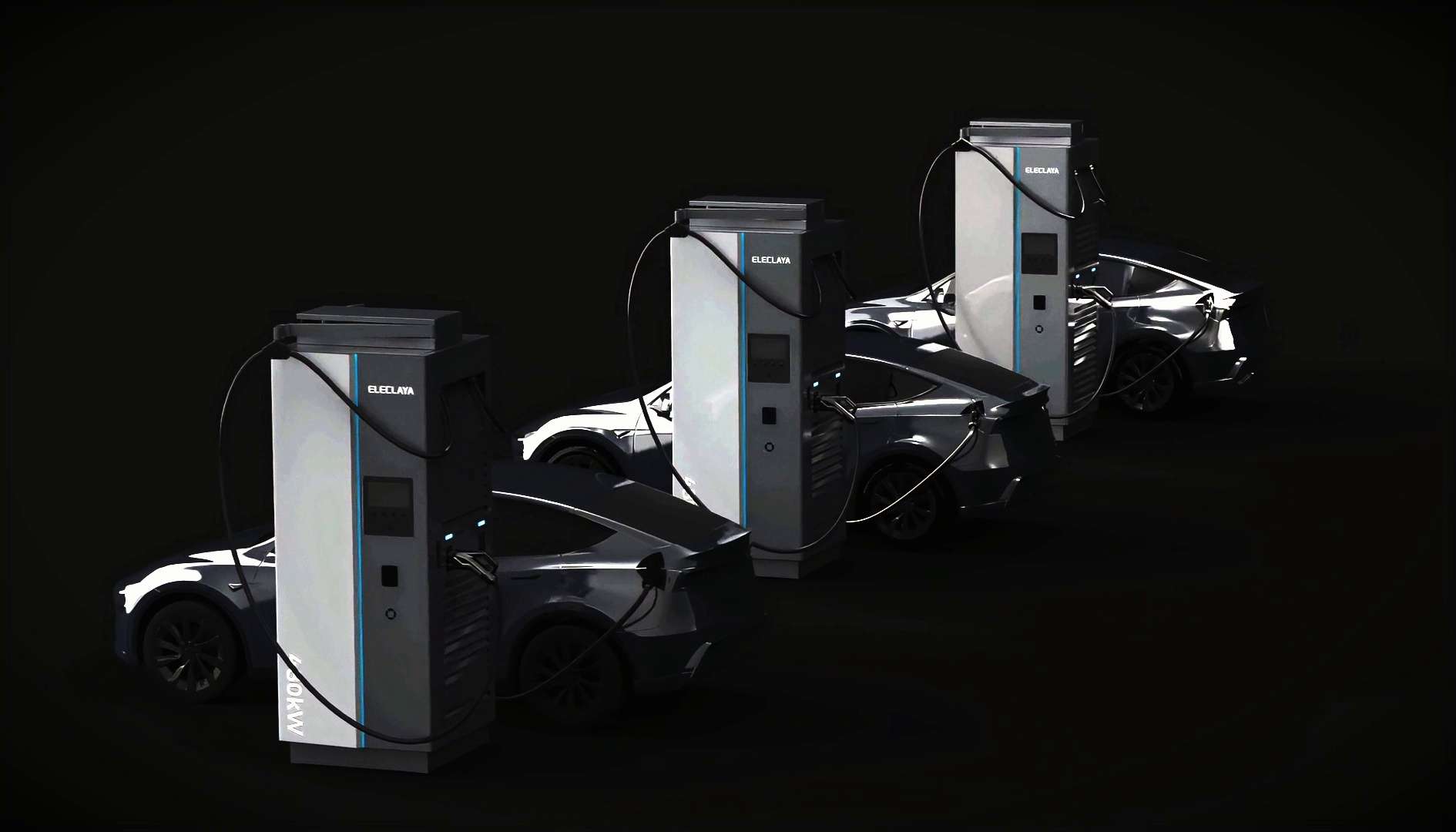

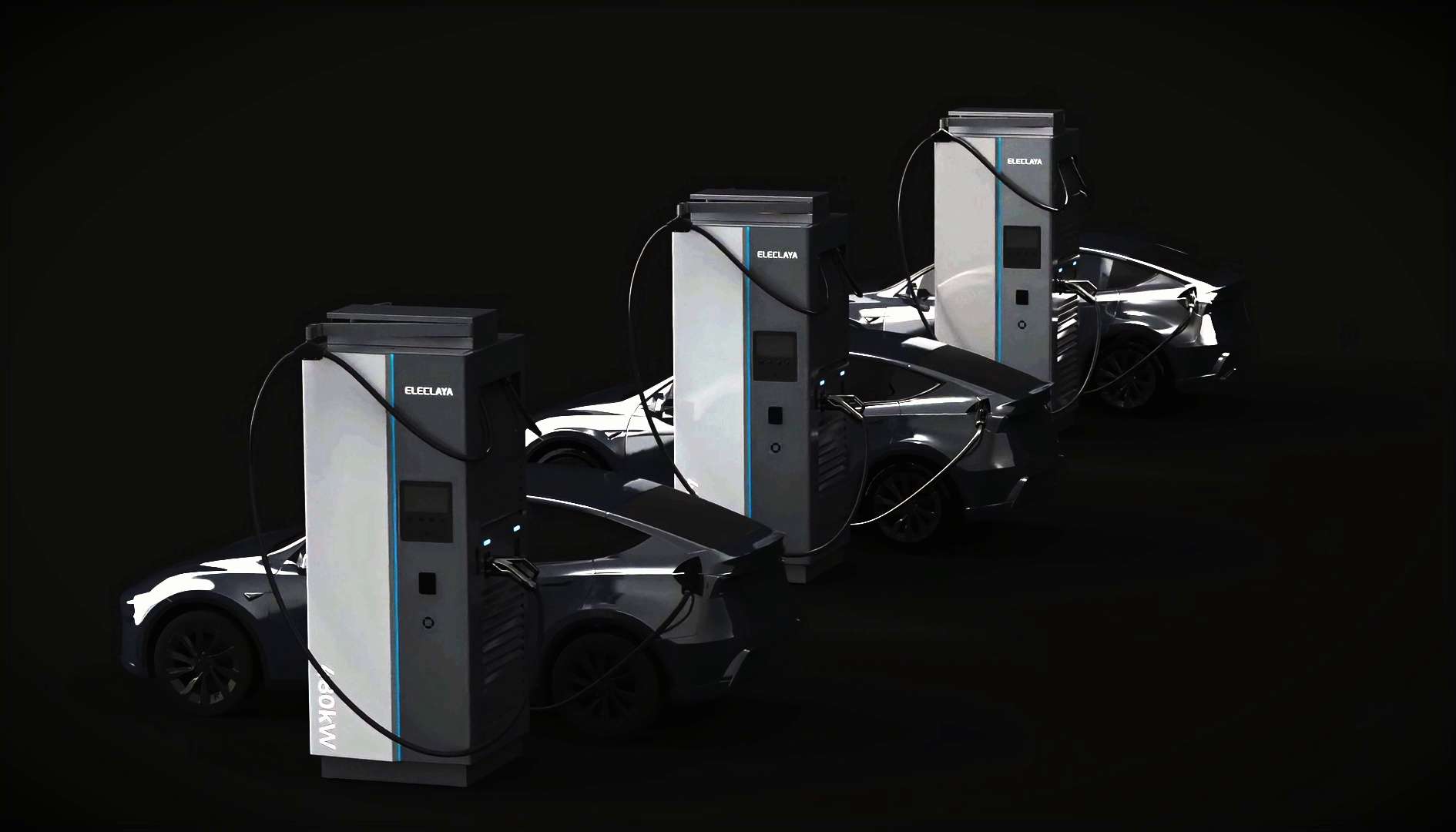

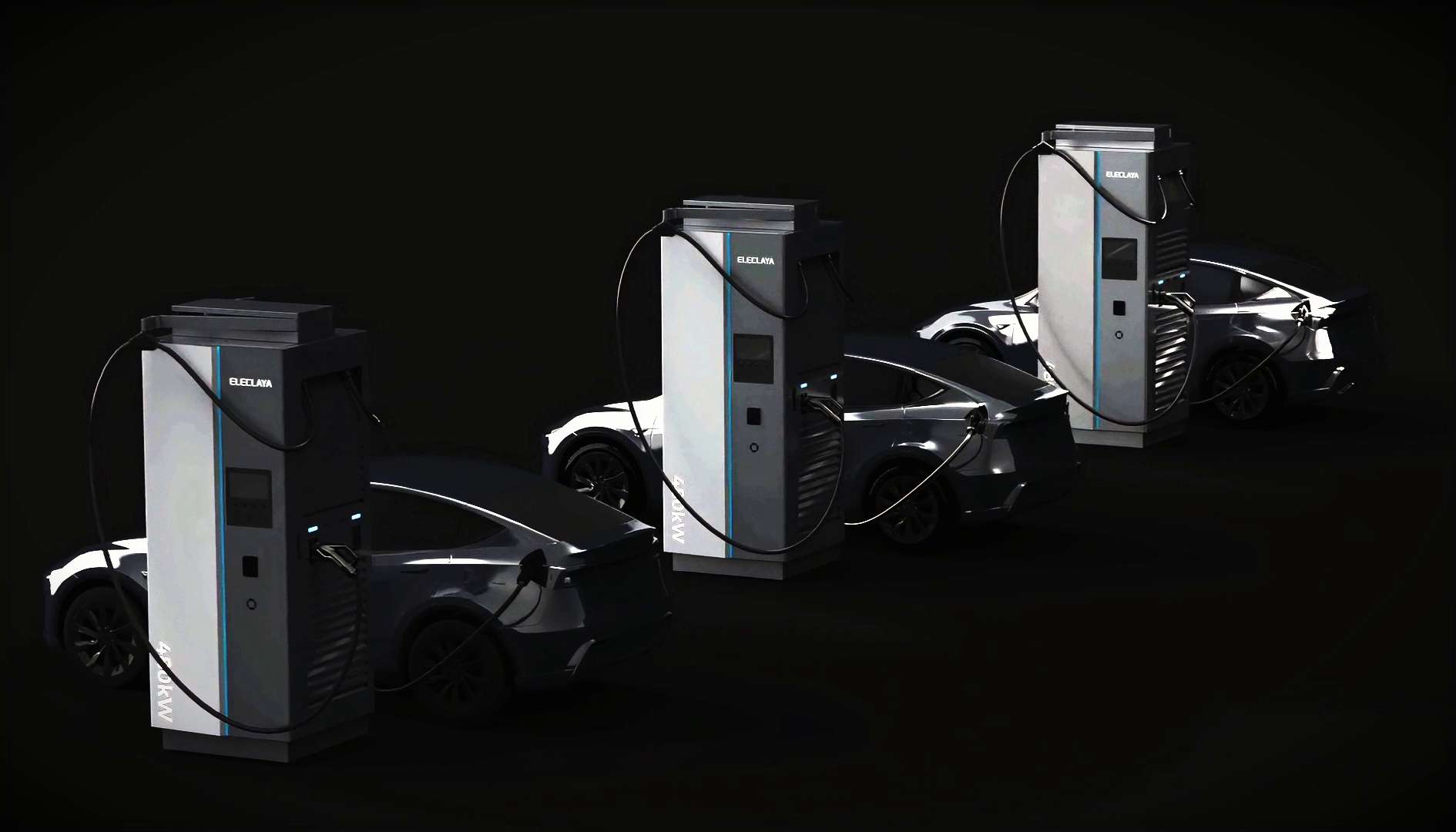

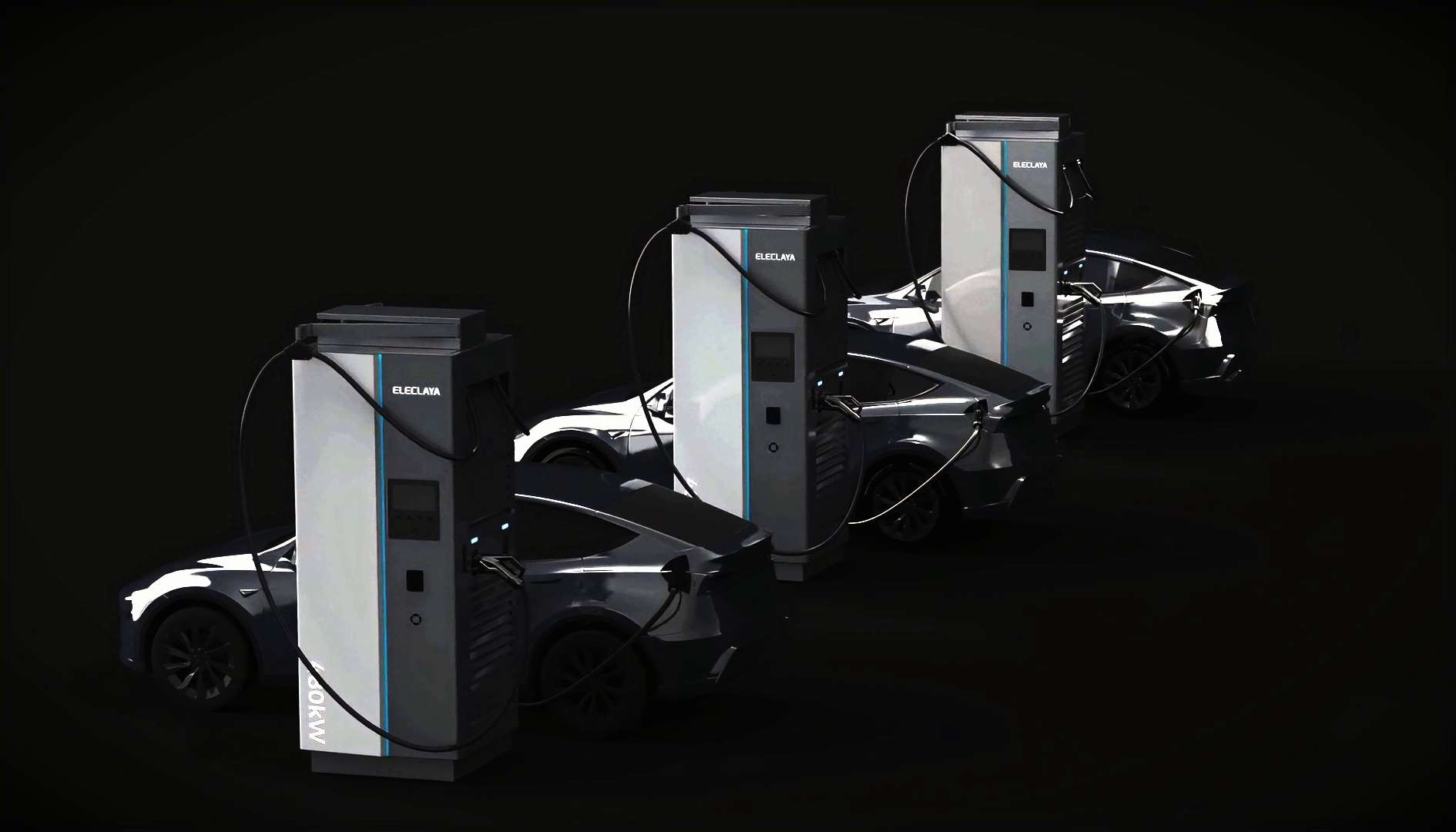

HIMA480kW

CCS2 Integrated DC Charging Pile

Configure Now
Product Sequence

Core Performance

The European Standard Integrated DC Charger with Independent Air Duct is built on first-principles engineering design

Hardware Sequence

Hardware Advantages

The European Standard Integrated DC Charger with Independent Air Duct is built on first-principles engineering design

Customizable

The European Standard Integrated DC Charger with Independent Air Duct is built on first-principles engineering design

Scenarios Sequence

Application Scenarios

We are committed to full-stack reconstruction from material interfaces, power topology to network protocols, using the laws of physics as the only criterion, eliminating the intrinsic losses in every link.

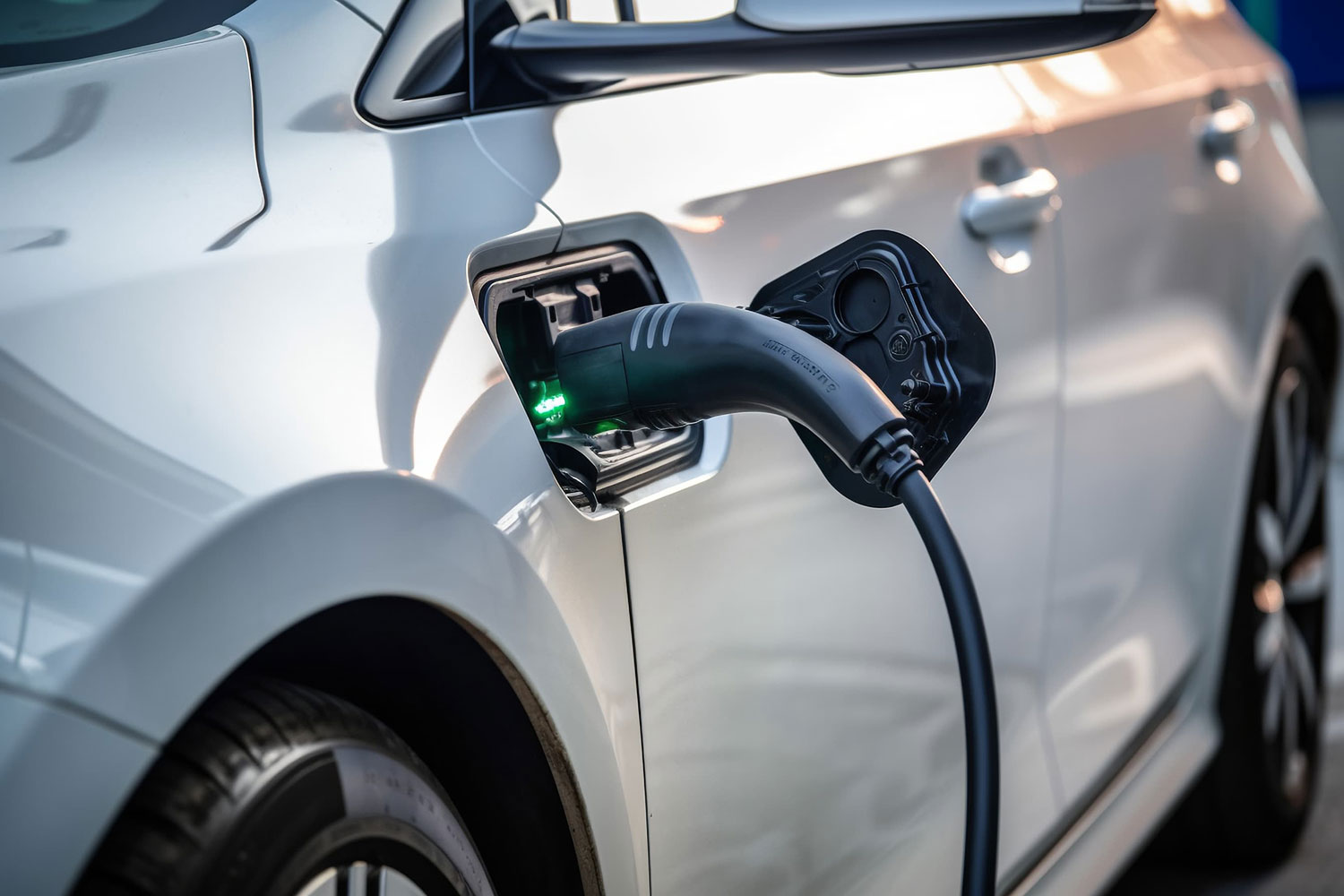

Product Configuration

Configure your

Can connect to operation and maintenance monitoring systems other than the OCPP operation system, realizing remote intelligent operation and maintenance management of devices, device positioning, lifecycle management, and module-level OTA.

System specifications

DC interfaces
CCS2, CHAdeMO, CCS1*, NACS*, GB/T* | (*Only upon special request by OEMs)
Load and charging management
Smart, dynamic allocation of power modules and distribution of charging power to charging points.
Operating temperature
-30 °C up to +55 °C
Operating height
≤ 4,000 m a.s.l. (For configuration with CHAdeMO cables, the max. installation height is limited to 2,000 m a.s.l.)
Environmental conditions, in storage
-40 °C up to +55 °C
Environmental conditions, under transport
-40 °C up to +70 °C
Humidity (in operation, storage)
10% - 95% relative (non-condensing)
Efficiency
up to 97.5%

Power Supply

Input voltage
400V AC ±10% / 480V AC ±10%
Frequency
50 Hz / 60 Hz
Power factor
> 0.99 @ full load
THDi
< 5% @ full load

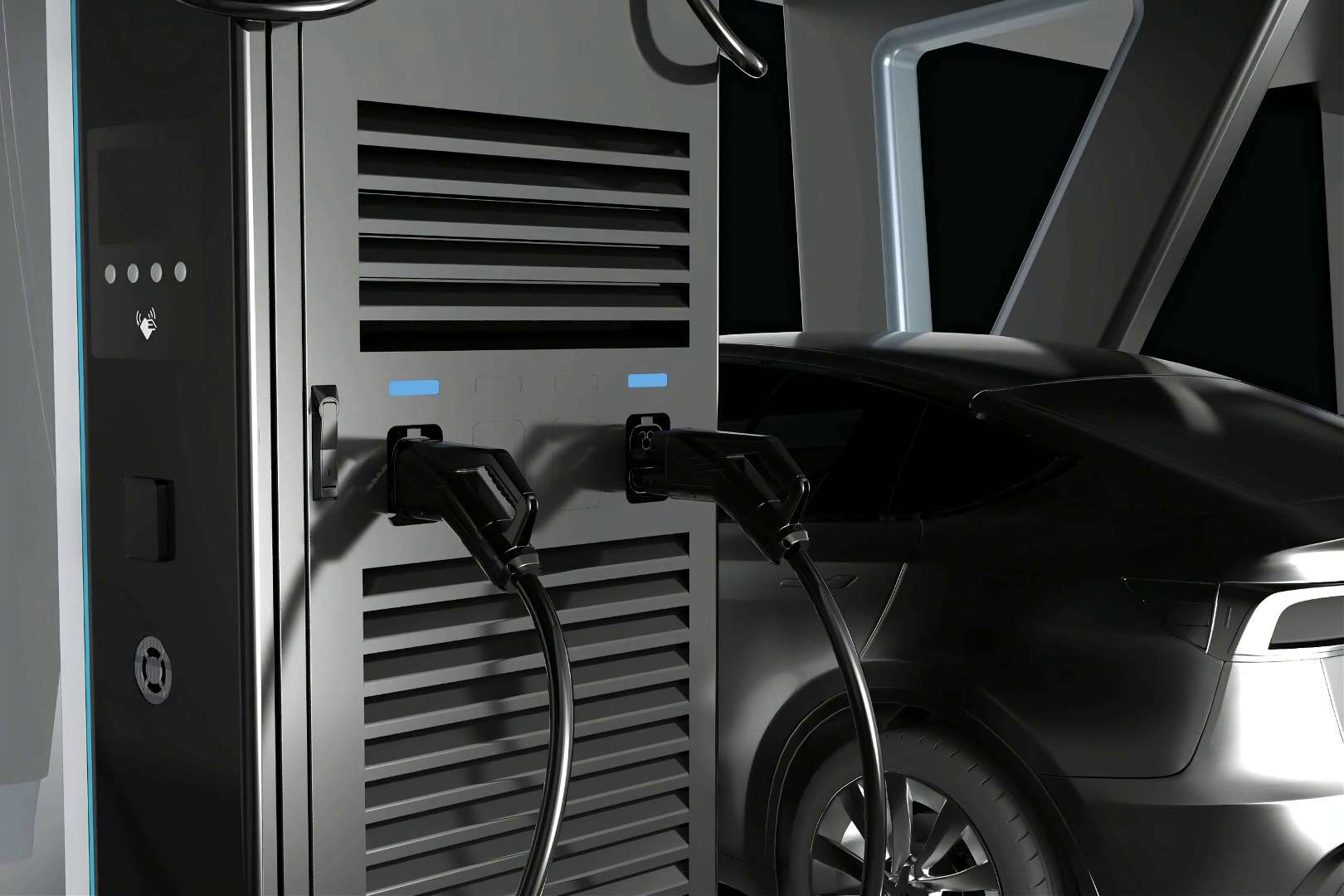

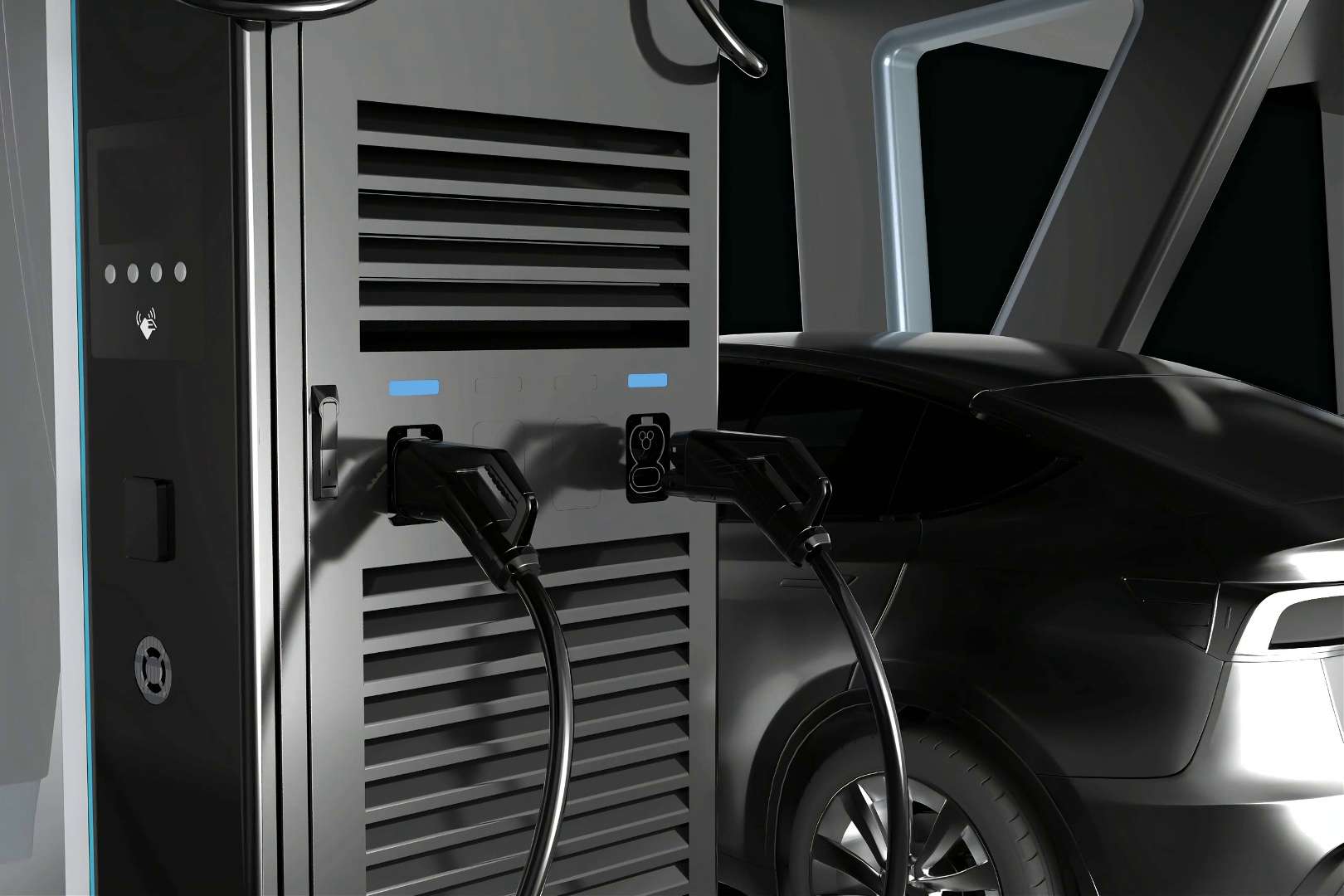

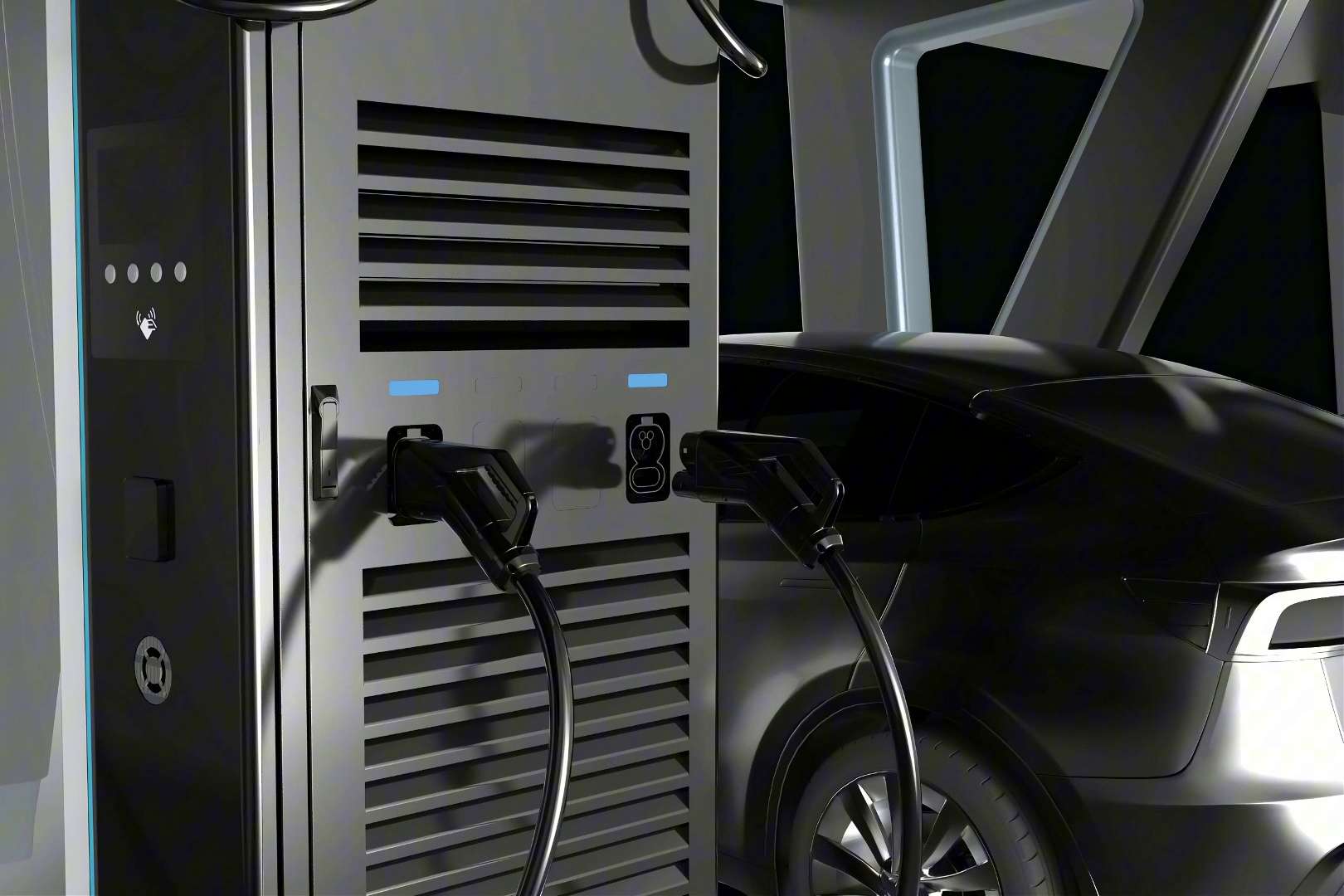

Charging interfaces

Cable length
3.5m to 10m (customizable)
Connector types
Liquid cooled / Air cooled options
Current rating
Up to 500A per connector

Configuration options

Display
15.6" Touchscreen / 10.1" Touchscreen
Payment terminal
RFID, Credit Card, App Payment
Communication
4G / Ethernet / WiFi / OCPP 1.6J / 2.0.1

Norms, compliance and standards

Safety
IEC 61851-1, IEC 61851-23
EMC
IEC 61851-21-2
Certifications
CE, UL, CB, TUV
