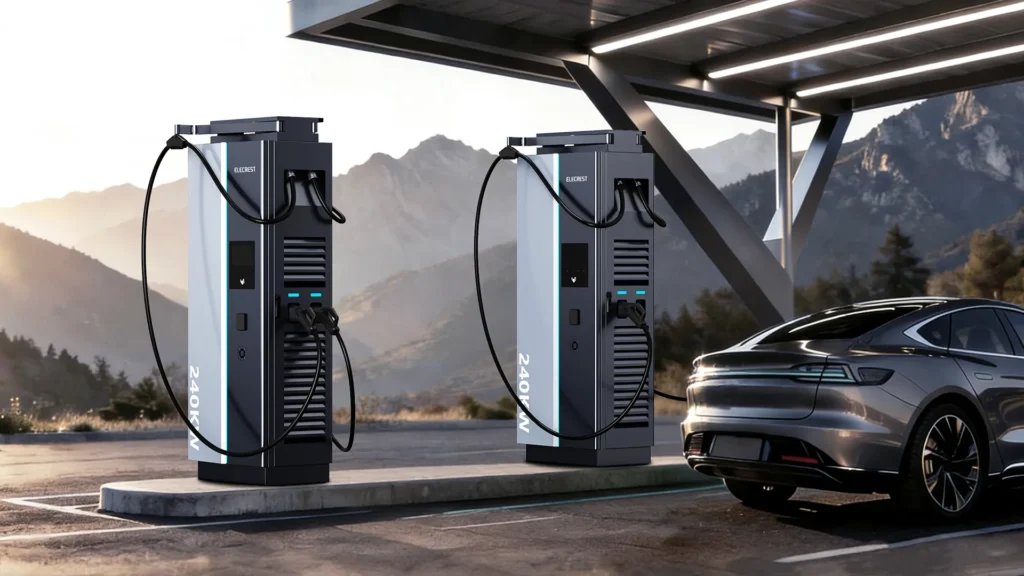

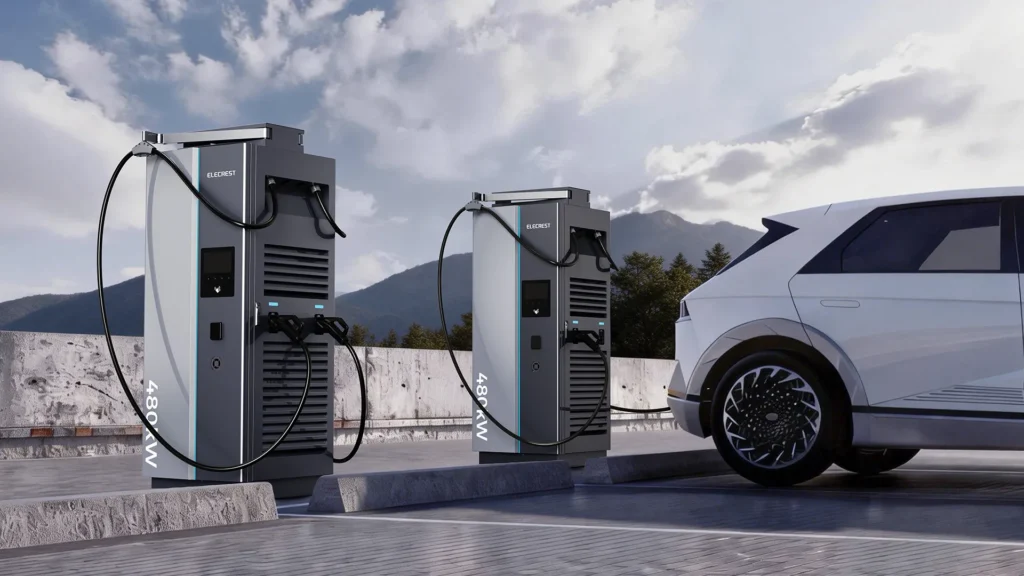

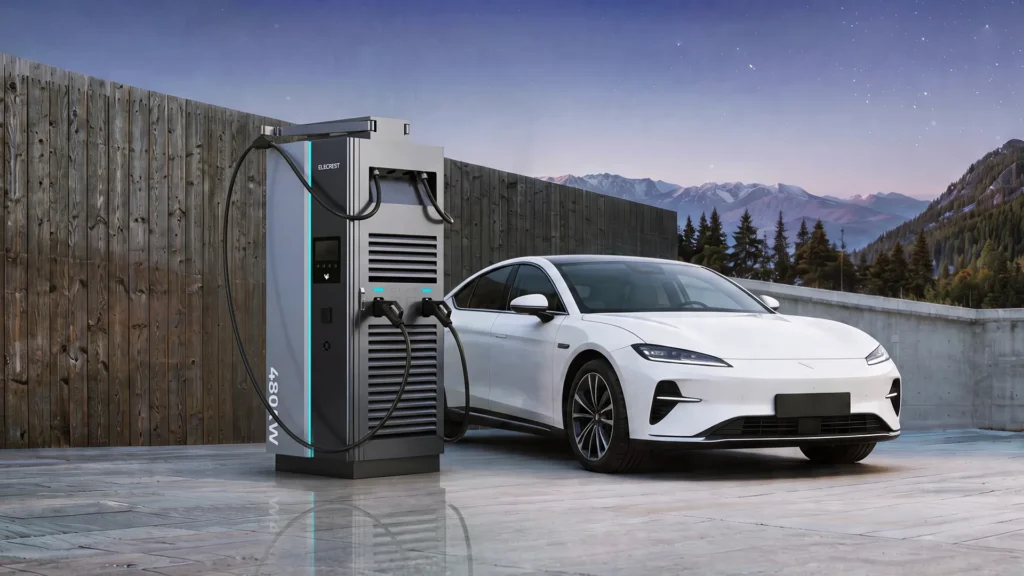

Deployed Everywhere Charging Matters
From urban parking to highway corridors, HIMA adapts to every deployment scenario with multi-standard connector support and intelligent power distribution.
Isolated airflow cooling
A separate cooling path keeps outside air away from sensitive power electronics in the air-cooled HIMA 240.
3-Box plug-in architecture
Separate power, control and communication modules let service teams replace an affected module without changing the whole charger.
AI-assisted maintenance
Connected operating data helps flag potential faults and guide remote support or a targeted service visit.
Engineering behind HIMA 240
Protected cooling, replaceable modules and connected fault support help you plan a HIMA 240 configuration for your site.

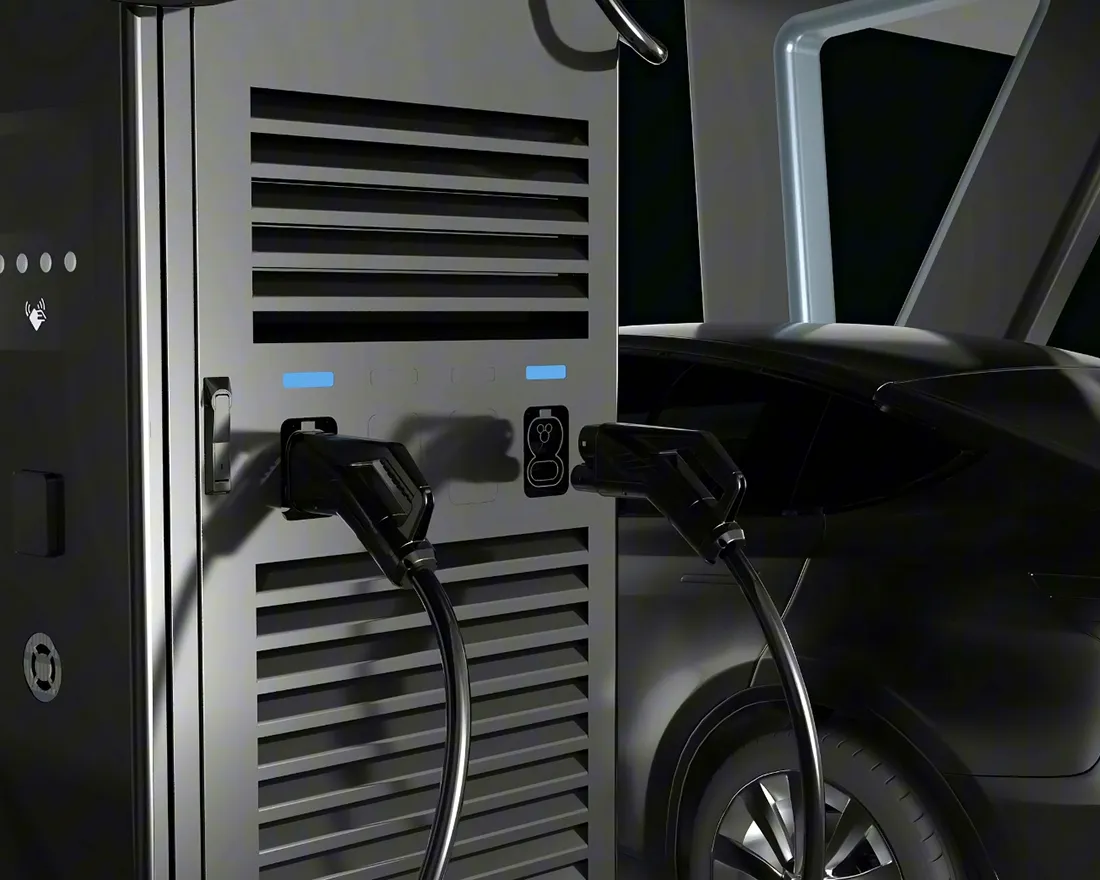

Independent Air Duct Architecture
Separated airflow channels isolate power electronics from ambient conditions, extending component lifespan and ensuring stable output across 30°C to +55°C.

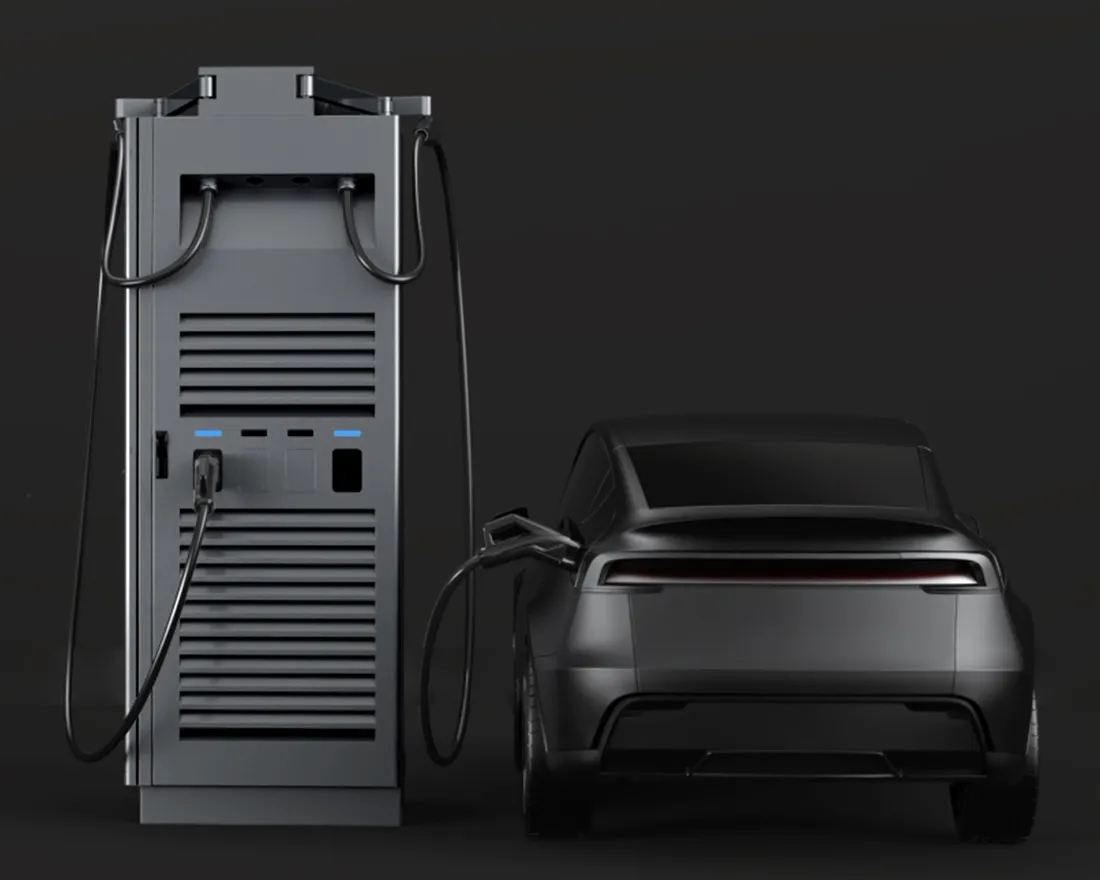

Up to 500A Per Connector
Liquid-cooled and air-cooled connector options deliver up to 500A per port, supporting the fastest charging speeds available in next-gen 800V EVs.
Multi-Standard Compatibility
Native CCS2 and CHAdeMO support, with CCS1, NACS, and GB/T available on request. One platform covers every market.
97.5% Peak Efficiency
ower factor >0.99 and THDi <5% at full load minimize grid impact and energy waste, reducing operational cost per kWh delivered.
Full Specifications
Complete technical parameters for the HIMA 240kW platform. All values per IEC 61851 standards.
Power Supply
| Input Voltage | 400 V AC ±10% | Frequency | 50 Hz / 60 Hz |
|---|---|---|---|
| Power Factor | > 0.99 at full load | THDi | < 5% at full load |
| Rated Input Current | 180 A (120 kW) / 360 A (240 kW) |
Charging Output
| Rated Output Power | 120 / 240 kW | Output Current | 250 A (120 kW) / 250 A (240 kW) |
|---|---|---|---|
| Output Voltage | 150–1,000 V DC | Connector Type (Optional) | CCS2 ×2 |
| Efficiency | ≥ 97% | Connector Quantity | CCS2 ×2 (optional; maximum 2) |
HMI & Communication
| Status LED | Supported for each connector | Meter | MID |
|---|---|---|---|
| Activation Method | RFID / APP / POS | Network | Ethernet / 4G |
| Display | 10-inch screen with 4 buttons | Language | English (optional) |
| POS | Optional | Protocol | OCPP 1.6J |
Environmental Conditions
| Operating Temperature | -30°C to +55°C | Storage Temperature | -30°C to +70°C |
|---|---|---|---|
| Relative Humidity | 5% to 95%, non-condensing | Operating Altitude | ≤ 2,000 m |
| Transport Temperature | -40°C to +70°C |
Mechanical & Protection
| IP Rating | IP55 | IK Rating | Cabinet IK10; screen IK08 |
|---|---|---|---|
| Noise | ≤ 55 dB | Cooling Mode | Air-cooled |
| Charging Cable Length | 5 m (optional) | Material | Stainless steel |
| Dimensions (H × W × D) | 2,300 × 860 × 590 mm | Weight | ≈ 340 kg (120 kW) / ≈ 420 kg (240 kW) |
| Installation Method | Floor-mounted |
Compliance & Certifications
| Safety | IEC 61851-1 / IEC 61851-23 | EMC | IEC 61851-21-2 |
|---|---|---|---|
| Certifications | CE / UL / CB / TÜV |
Plan your HIMA 240 configuration
Build a starting specification for HIMA 240, then share your site power and connector requirements with our team.
